The Artist Formerly Known as Activity
History
- Review Garmin Fitness (*.fit) files stored on your GPSMAP 66.
- Recorded Activities can be imported into Garmin Connect or BaseCamp.
- Activity files save date, time, distance, calories, speed, ascent, descent, and available sensor data.
Activity Limits
- The GPSMAP 66 can index up to 300 individual Activity (*.fit) files, each up to 20,000 points in length.
- Activity files over 20,000 points are filtered on device to maximize rendering efficiency without modifying the original *.fit files.
- The GPSMAP 66 will auto-archive the current activity and begin a new recording (as configured) when approaching the 20,000 activity point limit.
- Garmin Connect limits files to 25MB and 99,999 total points (maximum length of 27 hours when using a one second recording interval).
Activity Management
- Garmin FIT file recording is enabled by default (and can not be disabled) in [Setup > Recording > Advanced Setup > Output Format].
- Recorded Activities are saved to the [GPSR]\Garmin\Activities\ directory.
- Activity recording can be synchronized with Stopwatch activity.
- Activities completed from the Stopwatch page while 'Activity Sync' is enabled can be identified by a 'Stopwatch' suffix in the file name.

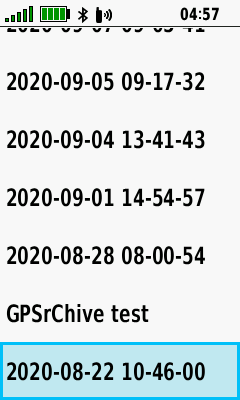

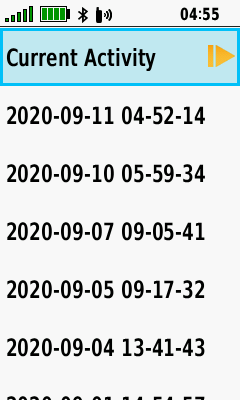

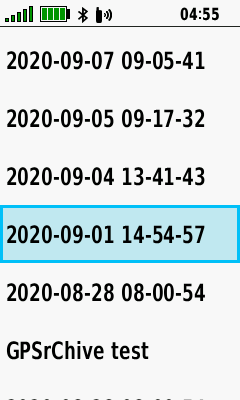

Select Activity
 |
 |
 |
 |
|---|---|---|---|
| View saved activities | Scroll to view all activities | Select desired activity | Open [Current Activity] |

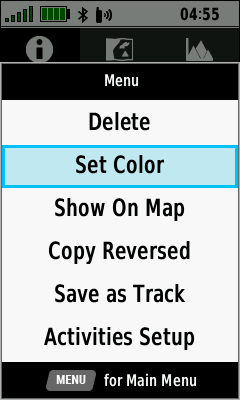

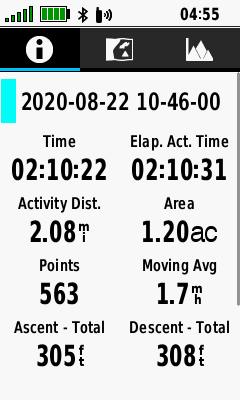

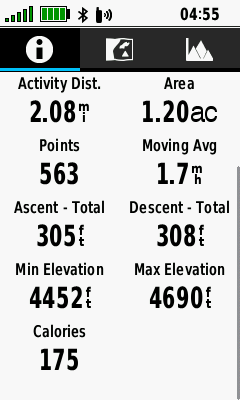

View Activity Info
 |
 |
 |
 |
|---|---|---|---|

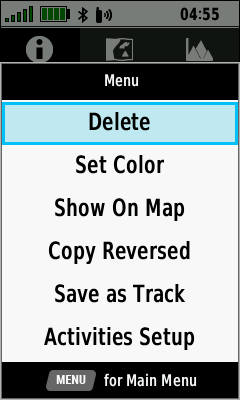

| Select desired activity | Open Information Tab | Scroll to view all information | (Menu) [Delete] |
 |
 |
 |
 |
| (Menu) [Set Color] | (Menu) [Show on Map] | (Menu) [Hide on Map] | (Menu) [Copy Reversed] |
 |
 |
||

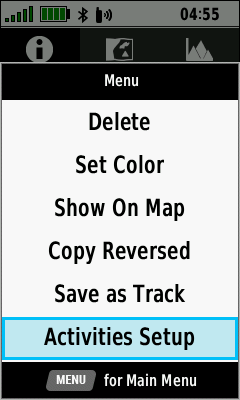

| (Menu) [Save as Track] | (Menu) [Activities Setup] |

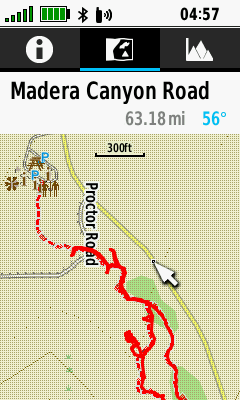

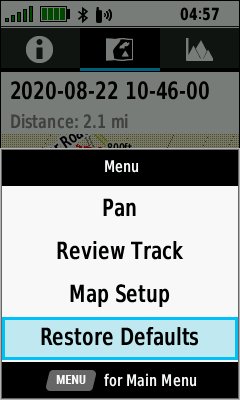

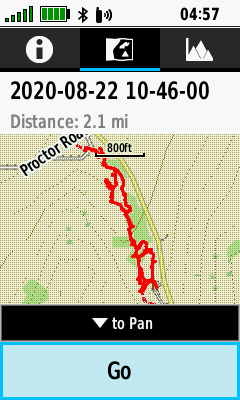

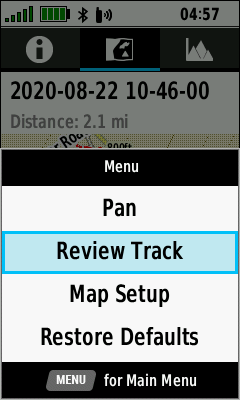

View Activity Map
 |
 |
 |
 |
|---|---|---|---|

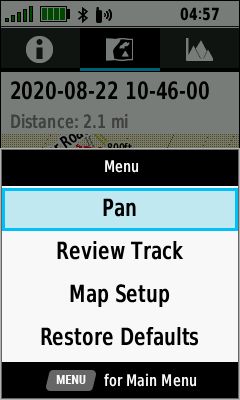

| Select desired activity | Open Map Tab | (Menu) [Pan] | Pan + zoom map as desired |
 |
 |
 |
 |

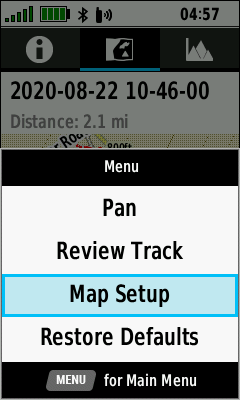

| (Menu) [Review Track] | View activity details | (Menu) [Map Setup] | (Menu) [Restore Defaults] |

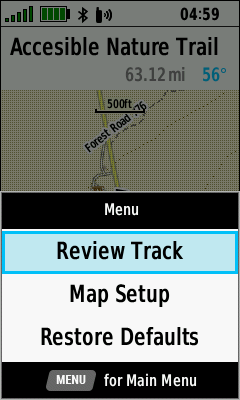

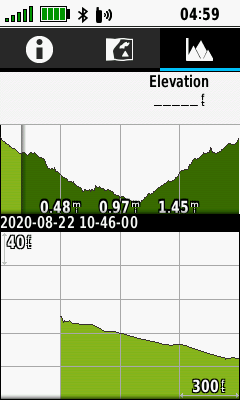

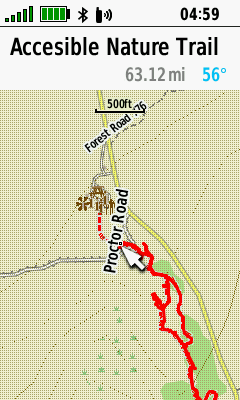

View Activity Plot
 |
 |
 |
 |
|---|---|---|---|

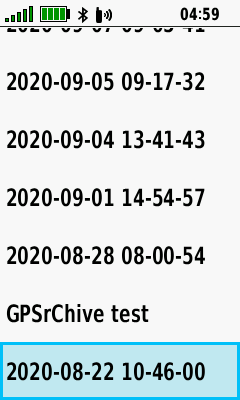

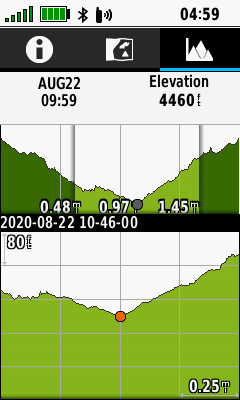

| Select desired activity | Open Elevation Plot Tab | Select desired plot point | (Menu) [View Map] |
 |
 |
 |
 |
| Selected location displayed on map |

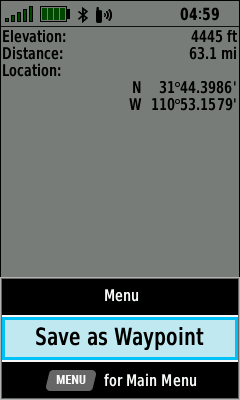

(Menu) [Review Track] | View point details | (Menu) [Save as Waypoint] |

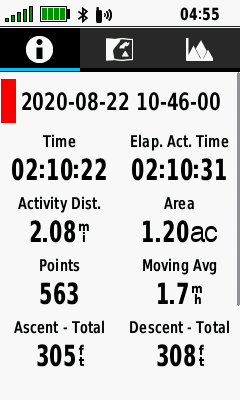

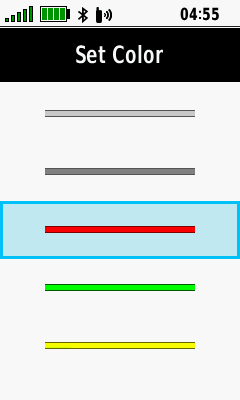

Edit Activity Color
 |
 |
 |
 |
|---|---|---|---|
| Open Information Tab | (Menu) [Set Color] | Select desired color | Activity Color is updated |

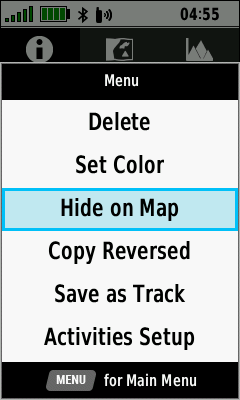

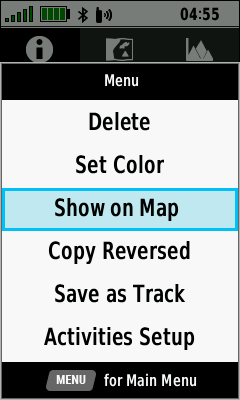

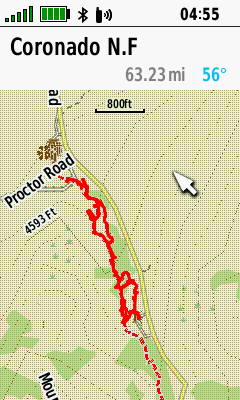

Activity Visibility
 |
 |
 |
 |
|---|---|---|---|
| (Menu) [Show on Map] | Activity displayed on map | (Menu) [Hide on Map] | Activity hidden on map |

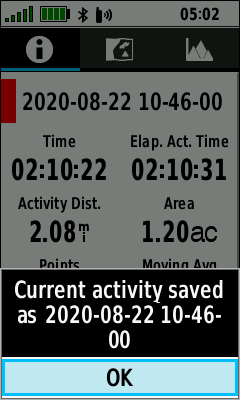

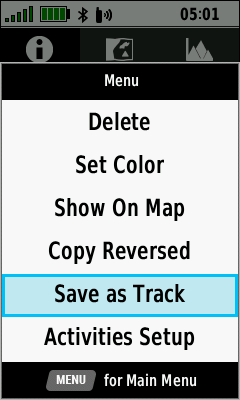

Save as Track
 |
 |
 |
 |
|---|---|---|---|
| Select desired activity | Open Information Tab | (Menu) [Save as Track] | [OK] |

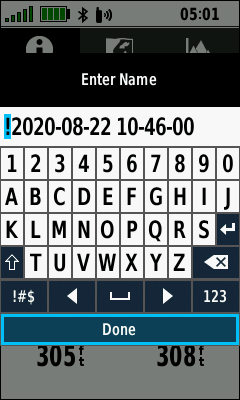

Copy Reversed
- '!' Prefix is automatically added to all Reversed Activities, and can be edited if desired.
 |
 |
 |
 |
|---|---|---|---|
| Open Information Tab | (Menu) [Copy Reversed] |
Edit
Activity Name if desired [Done] |
Reversed Activity is saved [OK] |

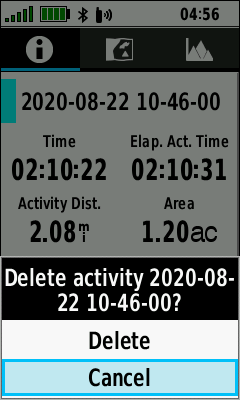

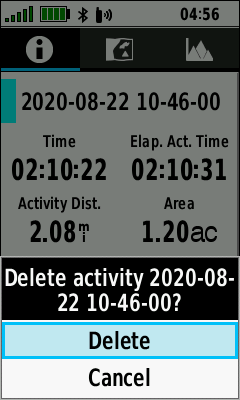

Delete Activity
 |
 |
 |
 |
|---|---|---|---|
| Open Information Tab | (Menu) [Delete] | Select [Delete] to proceed | Select [Cancel] to abort |
