Edit the Main Menu, Setup Menu, Find Menu and Page Ribbon configuration for the active profile:
- Change menu icon display size and style
- Add or Remove Main Menu Pages
- Change Main Menu icon display sequence
- Configure Page display sequence
- Change Setup Menu icon display sequence
- Change Find Menu icon display sequence
Menu Style
- Small Grid - Arranges icons in a 3x5 grid layout.
- Big Grid - Arranges icons in a 2x6 grid layout.
- List - arranges icons in a vertical 'rolling tape' list.
 |
 |
 |
|
|---|---|---|---|
| Small Grid | Big Grid | List |

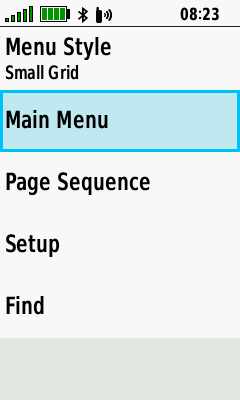

Main Menu

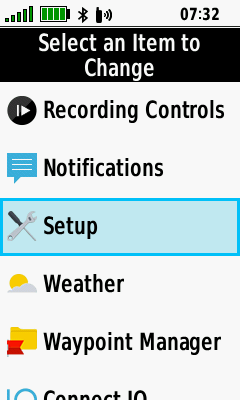

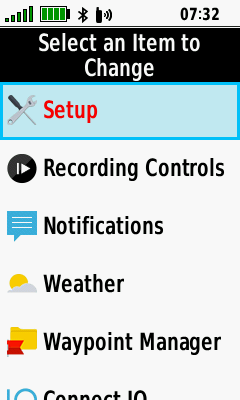

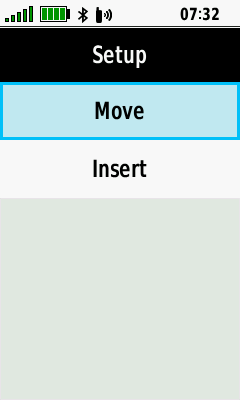

Move a Main Menu
Page
 |
 |
 |
 |
|---|---|---|---|
| Select [Main Menu] | Select desired Page to move |
Select
[Move] |
Move Page to new position using D-PAD buttons |
 |
 |
||
| Press (Enter) to confirm new position |
Page move is complete |

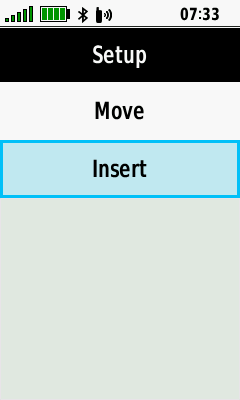

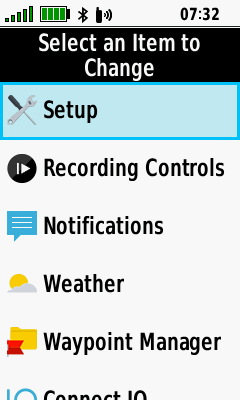

Insert a Main Menu
Page
 |
 |
 |
 |
|---|---|---|---|
| Select [Main Menu] | Select desired position to insert Page |
Select [Insert] | Choose desired category |

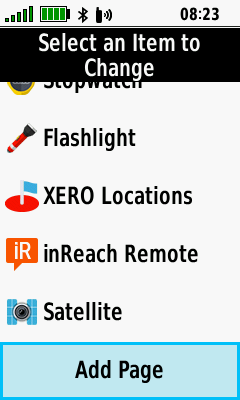

Add a Main Menu Page
 |
 |
 |
|---|---|---|
| Select [Main Menu] | Select [Add Page] | Choose desired category |

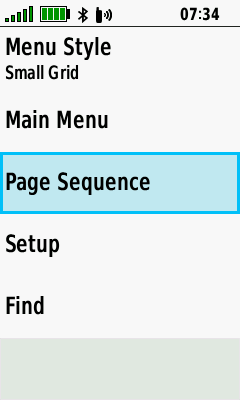

Page Sequence

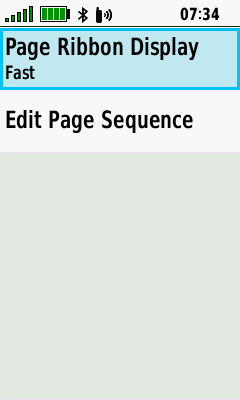

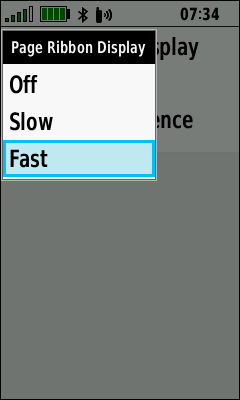

Page Ribbon Display
- Off - Pressing (Page)/(Quit) buttons cycles immediately to the next Page in sequence as configured in Edit Page Sequence.
- Slow - Pressing (Page)/(Quit) buttons cycles Page icons in a horizontal 'rolling tape'. The selected Page will be activated after a long pause.
- Fast - Pressing (Page)/(Quit) buttons cycles Page icons in a horizontal 'rolling tape'. The selected Page will be activated after a short pause.
 |
 |
 |
|---|---|---|
| Select [Page Sequence] | Select [Page Ribbon Display] | Choose desired option |

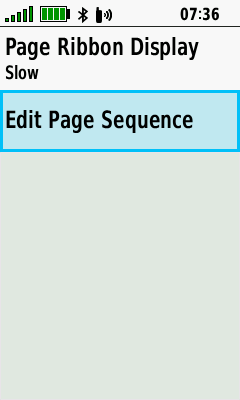

Edit Page Sequence
- The Page first listed in this sequence will be the default Page each time the GPSMAP 66 is powered on.
- In the following 'Move a Page' example:
- Initially, the Main Menu Page is displayed when the GPSMAP 66 is powered on.
- After changing the page sequence as shown, the Map Page becomes the default Page displayed when the GPSMAP 66 is powered on.

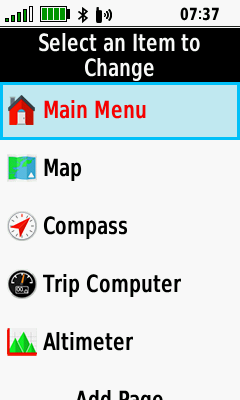

Move a
Page
 |
 |
 |
 |
|---|---|---|---|
| Select [Page Sequence] | Select [Edit Page Sequence] | Choose desired page | Select [Move] |
 |
 |
 |
|
| Move Page to new position using D-PAD buttons |
Press (Enter) to confirm new position |
Page move is complete |

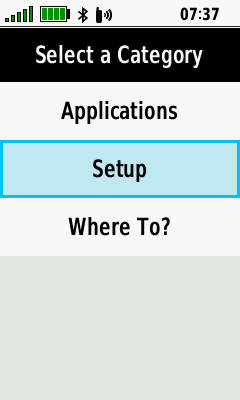

Insert a Page
 |
 |
 |
 |
|---|---|---|---|
| Select [Page Sequence] | Select [Edit Page Sequence] | Select desired position to insert Page |
Select [Insert] |
 |
|
||
| Choose desired category |

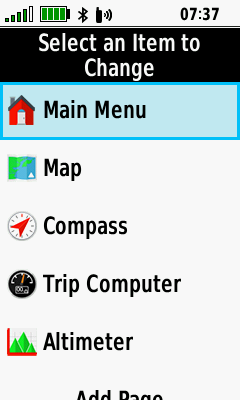

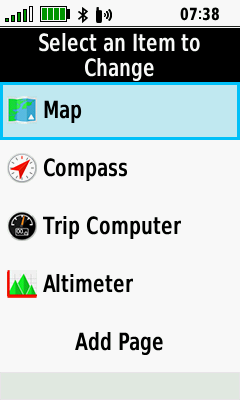

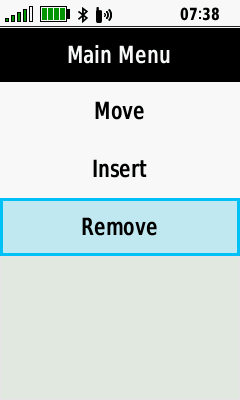

Remove a Page
 |
 |
 |
 |
|---|---|---|---|
| Select [Page Sequence] | Select [Edit Page Sequence] | Choose desired page | Select [Remove] |
 |
|
||
| Page is removed |

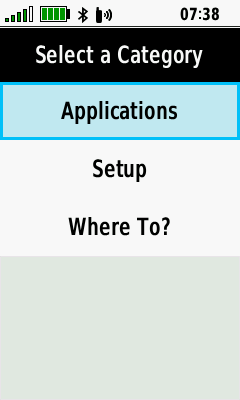

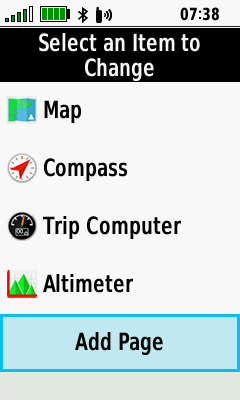

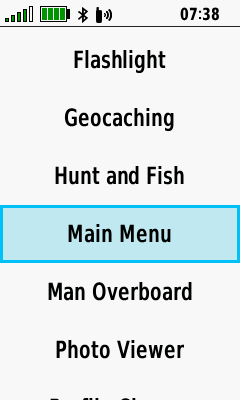

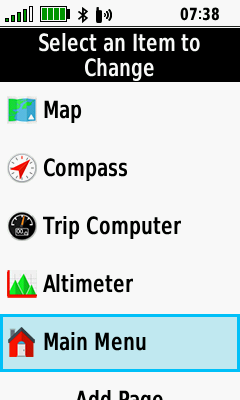

Add a Page
 |
 |
 |
 |
|---|---|---|---|
| Select [Page Sequence] | Select [Edit Page Sequence] | Choose [Add Page] | Choose desired category |
 |
 |
||
| Select from available options | Page is added |
Setup Menu
- Change the Setup Menu icon sequence.
 |
 |
 |
 |
|---|---|---|---|
| Select [Setup] | Choose desired icon | Move icon to desired position using D-PAD buttons |
Press (Enter) to confirm new position |
 |
|
||
| Icon move is complete |

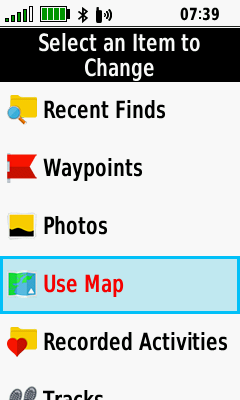

Find Menu
- Change the Find Menu icon sequence.
 |
 |
 |
 |
|---|---|---|---|
| Select [Find] | Select desired icon and press (Enter) |
Move icon to new position using D-PAD buttons |
Press (Enter) to confirm new position |
 |
|
||
| Icon move is complete |
