Controls

Button Operation

Controls Button Operation Special Key Functions Status LED Status Bar Icons

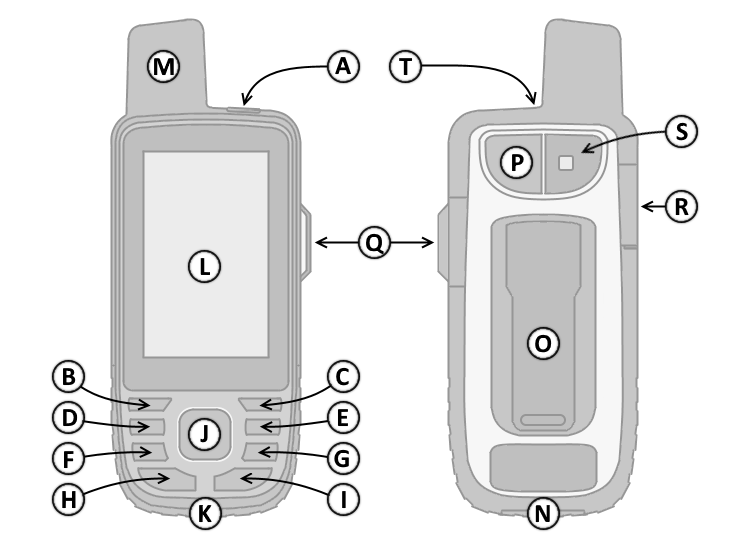

Function


	A.	POWER
	B.	IN (+)
	C.	OUT (-)
	D.	FIND
	E.	PAGE
	F.	MARK
	G.	MENU
	H.	QUIT
	I.	ENTER
	J.	D-PAD
	K.	Lanyard Attachment
	L.	Color Display
	M.	GNSS Antenna
	N.	External Charging Contacts
	O.	Accessory Spine Mount
	P.	USB Connector (Under Cover)
	Q.	SOS Button (Under Cover, 67i only)
	R.	microSD Card (Under Cover)
	S.	Multifunction LED Flashlight
	T.	Multicolor Status LED

Expedition Mode or Battery Save is Active

SOS Mode is Active

Device does not have a clear view of the sky or Battery power is below 10%

Unread message notification

A. POWER Button		G. MENU Button
1. Press and hold to turn unit on/off.		1. Press and release to open option menu for currently active page.
2. Press and release to open Status Page, or		2. Press and release twice to open the main menu (from any page).
3. Press and release to save a Screenshot (when enabled).		H. QUIT Button
B. Button		1. Select to cancel or return to the previous menu or page.
1. Select to zoom in on the map.		2. Press and release to loop through display pages in reverse order.
C. Button		I. ENTER Button
1. Select to zoom out on the map.		1. Press and release to make menu selections and/or acknowledge
D. FIND Button		notifications and messages.
1. Select to open the search menu.		2. Press and release to access current activity recording controls in the
2. Press and hold to activate Man Overboard.		Altimeter, Compass, Map and Trip Computer pages.
E. PAGE Button		J. D-PAD Button
1. Press and release to loop through display pages.		1. Navigate menu selections, pan the map, or move the arrow/cursor.
F. MARK Button		Q. SOS Button (67i only)
1. Press and release to save current location as a waypoint.		1. Lift cover then press and hold to initiate or cancel SOS Rescue.

Special Key Functions

hold (Page) + (Enter) + cycle (Power) + release (Page) + (Enter) after backlight illuminates = Master Reset
(Enter) + (Power) = Diagnostic Menu
- D-PAD (Up)/(Down) = Select Desired Test Mode (Enter)
- (Quit) = Exit Selected Test Mode
- (Page) = Cycles Diagnostic Screens
Trip Computer > D-PAD (Right) to last page > D-PAD (Up) > (Right) > (Down) > (Left) = Error Logs

D-PAD (Up)/(Down) = Select Desired Error Log (details displayed at bottom of screen)
D-PAD (Up) > (Right) > (Down) > (Left) = Logging Control Menu
(Quit) = Exit Selected Test Mode

Status LED

Status Bar Icons

GPS signal strength

GPS Multi-Band enabled

GPS disabled

Battery charge remaining

Battery charge < 20%

Battery charging

Battery charging complete

Battery charging error

Battery too hot (unable to charge)

Battery too cold (unable to charge)

Bluetooth status

Wi-Fi status

Wireless Sensor status

Sending/Receiving inReach data

Unread inReach messages

inReach Tracking active

LiveTrack enabled
