Function

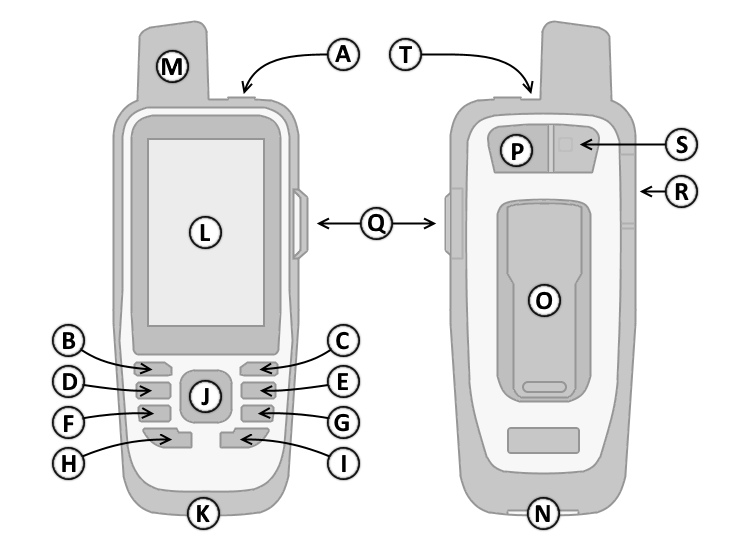

Controls


	A.	POWER
	B.	IN (+)
	C.	OUT (-)
	D.	FIND
	E.	PAGE
	F.	MARK
	G.	MENU
	H.	QUIT
	I.	ENTER
	J.	D-PAD
	K.	Lanyard Attachment
	L.	Color Display
	M.	GPS Antenna
	N.	External Charging Contacts
	O.	Accessory Spine Mount
	P.	USB Connector (Under Cover)
	Q.	SOS Button (Under Cover)
	R.	microSD Card (Under Cover)
	S.	Multifunction LED Flashlight
	T.	Status LED

A. POWER Button		H. QUIT Button
1. Press and hold to turn unit on/off.		1. Select to cancel or return to the previous menu or page.
2. Press and release to open Status Page.		2. Press and release to loop through display pages in reverse order.
B. Button		I. ENTER Button
1. Select to zoom in on the map.		1. Press and release to make menu selections and/or acknowledge
C. Button		notifications and messages.
1. Select to zoom out on the map.		2. Press and release to access current activity recording controls in the
D. FIND Button		Altimeter, Compass, Map and Trip Computer pages.
1. Select to open the search menu.		J. D-PAD Button
2. Press and hold to activate Man Overboard.		1. Press up, down, left or right to navigate menu selections, pan the map,
E. PAGE Button		or move the arrow/cursor.
1. Press and release to loop through display pages.		Q. SOS Button
F. MARK Button		1. Lift Protective Cover.
1. Press and release to save current location as a waypoint.		2. Press and hold to initiate or cancel an SOS Rescue.
G. MENU Button
1. Press and release to open option menu for currently active page.
2. Press and release twice to open the main menu (from any page).

Special Key Functions

hold (Page) + (Enter) + cycle (Power) + release (Page) + (Enter) after backlight illuminates = Master Reset
(Enter) + (Power) = Diagnostic Menu
- D-PAD (Up)/(Down) = Select Desired Test Mode (Enter)
- (Quit) = Exit Selected Test Mode
- (Page) = Cycles Diagnostic Screens
Trip Computer > D-PAD (Right) to last page > D-PAD (Up) > (Right) > (Down) > (Left) = Error Logs

D-PAD (Up)/(Down) = Select Desired Error Log (details displayed at bottom of screen)
D-PAD (Up) > (Right) > (Down) > (Left) = Logging Control Menu
(Quit) = Exit Selected Test Mode

Status LED

					Expedition Mode is Active
					SOS Mode is Active
					Device does not have a clear view of the sky or Battery power is below 10%
					Unread message notification

Status Bar Icons

		GPS signal strength
		GPS disabled
		Battery charge remaining
		Battery charge < 20%
		Battery charging
		Battery charging complete
		Battery charging error
		Battery too hot (unable to charge)
		Battery too cold (unable to charge)
		Bluetooth status
		Wi-Fi status
		Wireless Sensor status
		Sending/Receiving inReach data
		Unread inReach messages
		inReach Tracking active
