Find Your Way
- 3-axis internal compass provides function similar to traditional compass.
- Performs advanced navigation functions in dynamic environments.
- With [Setup > Heading > Compass > Off] the Heading updates only while moving.
- With [Setup > Heading > Compass > Auto] the 3-axis Compass is disabled while traveling at higher rates of speed.
- Accent colors are displayed using the day/night colors selected in [Setup > Appearance].
- View Compass remotely with Compass dashboard.

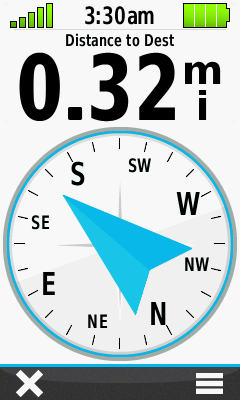

Display
- Provides visual Heading and Bearing information (as configured).
- Additional information can be displayed via Dashboard selection.
Compass
- 3-axis compass provides accurate Heading information regardless of device orientation.
- Compass Ring is displayed using day/night colors selected in [Setup > Appearance].
- Compass Heading display can be selected in [Setup > Heading > Display].
 |
 |
 |
 |
|||||
|---|---|---|---|---|---|---|---|---|
| Compass Ring indicating SSW Heading |
Cardinal Letters |
Numeric Degrees |
Mils |
Bearing
- Bearing Pointer indicates the direction to your destination relative to your current Heading direction.
- Bearing Pointer is displayed using day/night colors selected in [Setup > Appearance].
- Bearing Pointer style can be selected in [Setup > Heading > Go To Line/Pointer].
 |
 |
 |
 |
|||||
|---|---|---|---|---|---|---|---|---|
| Bearing Pointer indicating SSE Bearing |
Large Bearing Pointer |
Medium Bearing Pointer |
Small Bearing Pointer |
CDI
- Course Deviation Indicator displays your relationship to a course line leading to the destination from the original starting point.
- CDI are most useful when navigating by air, water, or where no major obstacles obstruct your path.
- The CDI Pointer is displayed using day/night colors selected in [Setup > Appearance].
-
The CDI Drift Scale can be adjusted
to a full scale value of 0.25, 1.25,
or 5.00 using the
menu buttons.-
Each point in the drift scale represents 20%
of the selected scale value:
- When set to 0.25, each point represents 0.05 of the selected measurement value.
- When set to 1.25, each point represents 0.25 of the selected measurement value.
- When set to 5.00, each point represents 1.00 of the selected measurement value.
-
Each point in the drift scale represents 20%
of the selected scale value:
 |
 |
 |
 |
|||||
|---|---|---|---|---|---|---|---|---|
| This CDI indicator is
reporting a 192° heading and 227° bearing with a course drift to port (left) of approximately 0.12 mile |
The Compass Ring indicates your current orientation in relation to North Reference |
'To/From' Flag indicating the current direction of travel is 'To' the selected destination |
'To/From' Flag indicating the current direction of travel is 'From' the selected destination |
|||||
 |
 |
 |
 |
|||||
| The Bearing Pointer indicates direction to selected destination |
The CDI Drift Scale provides a visual reference to measure drift severity |
The Course Deviation Needle indicates the desired course line relative to your current location |
This Course Deviation Needle indicates a severe course drift beyond full drift scale value |
|||||
Menu Options
- Sight 'N Go
- Stop Navigation
- Change Dashboard
- Calibrate Compass
- Setup Heading
- Lock Data Fields
- Restore Defaults
