Extended Functionality

• The Oregon 7x0 series provides access to 12 Dashboards.
• Dashboards allow you to show more features and functions when and where you need them.
• Provides at-a-glance information and added controls, you can multi-task without having to exit the current application.
• Dashboards can be enabled individually on each Main Menu page, on the Status page, and within the Map, Compass and Trip Computer applications.
• Dashboard availability may vary with each application.

Selecting Dashboards

• Choose an available dashboard to enhance your Oregon 7x0 experience:

Enable Dashboard

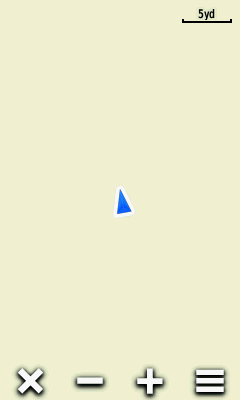

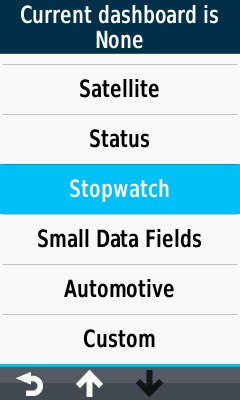

	Map page without active dashboard		[Setup Map]		Select [Dashboard]		Choose desired dashboard

Change Dashboard

• Use Enable Dashboard method or...

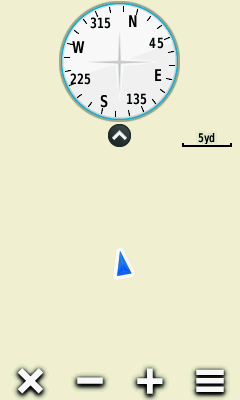

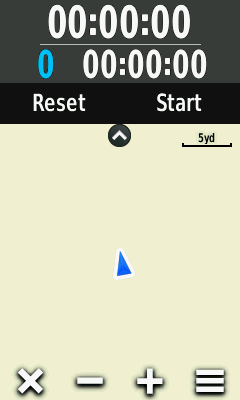

	Press and Hold active dashboard		Choose desired dashboard		Selected dashboard is enabled

Custom Dashboard

• Configure desired dashboards based on current navigation status:

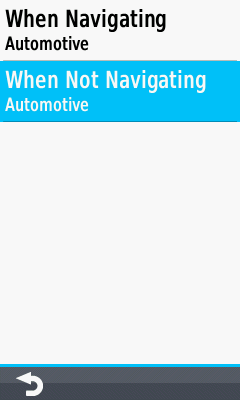

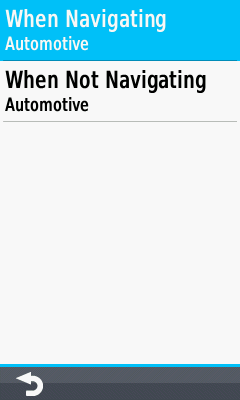

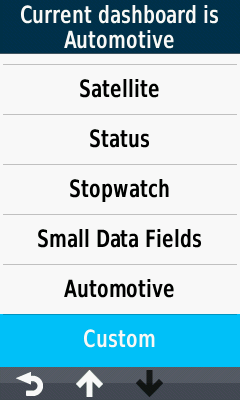

	Select [Custom]		Select and Choose [When Navigating]		Select and Choose [When Not Navigating]

Available Dashboards

• Select desired Dashboard to view more information

Altimeter	Automotive	Bike	Compass
Favorites	Geocaching	Large Data Field	Recreational
Satellite	Small Data Fields	Status	Stopwatch
