Overview

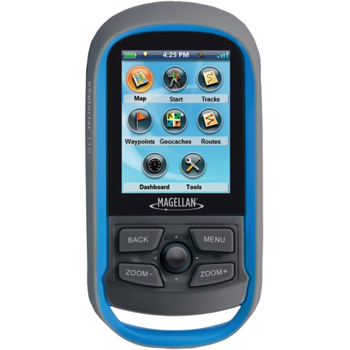

The Magellan eXplorist 110 GPS receiver comes with essential navigation features and is ready to use right out of the box.

A vibrant, transflective color screen allows for the best readability in direct sunlight. To zero in on the exact location of a geocache, favorite fishing spot, or the next summit, the SiRFstar III GPS chipset provides accuracy of 10-15 feet (3-5 meters). To keep your outdoor adventure going all day long, the device is powered by two AA batteries for 18 hours of constant usage.

  The eXplorist 110 is rugged, waterproof, and submersible (IPX-7). All of this is packed into a small and attractive handheld form factor that can be hung around your neck with the optional Magellan lanyard or attached to your pack with the built-in carabineer hook.

The eXplorist 110 is pre-loaded with the World Edition map, which includes a complete road network in the United States, Canada, Western Europe, and Australia and major roads throughout the rest of the world. This unique map also includes water features, urban and rural land use, and city centers. With the 110 you can overlay a series of different transparent compass styles on top of the pre-loaded World Map that shows roads, water features, parks, and city centers.

The dashboard screen has a mini-compass for quick reference and customizable navigation data fields, such as latitude, longitude, heading, bearing, distance to end, trip odometer, and many more. View your active track, which is a series of digital breadcrumbs that records all your movements. Mark your starting point (car, trailhead, parking lot…) with a waypoint and easily navigate back at the end of the day.

Reference your track summary to keep track of your distance travelled, elevation gained or lost, complete travel time, moving time and stopped time, and average time to find. Easily reset your track summary statistics to track the details of your next geocaching adventure.

No matter where you enjoy the outdoors, the eXplorist 110 GPS receiver will provide precise GPS signals thanks to the Satellite Based Augmentation Systems (SBAS) of WAAS, EGNOS, and MSAS; display coordinates in a myriad of different global systems, including UTM and WGS84; and accurately guide you to and from your next adventure, where ever in the world that may be.

Easy to Navigate Menus and Rich Graphics

A simple main menu, intuitive contextual menus, and vibrant graphics make this device easy to use.

Brilliant, sunlight readable color screen

A vibrant 2.2” color transflective screen provides the best readability in direct sunlight.

Rugged and waterproof to IPX-7 standards

Focus on the adventure not protecting the device.

High-sensitivity SiRFstar III GPS with 3-5 meter accuracy

3-5 meter GPS accuracy provides a superior navigation experience.

Pre-loaded World Edition Map

Referencing a complete road network in North America and Western Europe and major roads throughout the rest of the populated world to help in orientation. See parks, rivers, lakes, major city points, and other types of land use areas.

18 Hours of battery life using 2 AA batteries

Go strong for an entire day (or more). No stopping to replace the batteries.

Suspend Mode

The goal is to conserve battery life by putting the device into an advanced power saving mode. Suspend mode will turn off everything expect for GPS tracking. Wake up the device with a single click.

Paperless Geocaching

Download and view more than 20 unique characteristics of each cache and view, search, filter on the device. Details include name, location, description, hider, size, difficulty, terrain, hint, spoilers, and last 20 user logs among a number of other details.

500 megabytes of user memory available

Loads of space to store additional maps, geocaches, waypoints, and tracks.

Record Tracks and See “Breadcrumbs” on the Map Screen

Keep a log of all the steps you took throughout the day. Reference your track to find your way back or to keep a digital journal of all your outdoor adventures.

Track Summary

Start your journey with one-click and keep tabs on useful statistics such as distance travelled, average speed, elevation gain and descent, and average time to find.

NMEA Message Output (USB Only)

For hardcore outdoor GPS enthusiasts who want to connect their device to laptop running VantagePoint software and see your position on computer screen.

Multiple Coordinates and Map Datums

Navigate around the world and do it accurately. See your geographic location in UTM coordinates or reference the OS Grid for use in Great Britain.

Specifications

Part Number CX0110SGXNA
Unit Dimensions 2.2" x 4.4" x 1.4" (5.6 cm x 11.1 cm x 3.6 cm)
Display Size 2.2" Diagonal QVGA (240x320)
Display Type Color Transflective
Touch Screen No
Weight 5.2 oz (147 g)
Battery Type AA x 2
Battery Life 18 hours
Waterproof Yes (IPX7)
Floats No
High Sensitivity Receiver Yes (SiRFstar III)
GNSS Antenna Patch
GNSS Constellations GPS + WAAS/EGNOS
Accuracy 3 - 5 meters (WAAS/EGNOS)
CPU 233 MHz
Bluetooth No
Wi-Fi No
Interface USB
Memory 500 MB user data (2 GB total)
Basemap No
Preloaded Maps Yes (World Edition)
Add Maps No
Data Card No
Waypoints 500
Routes 25 (25 legs per route)
Track Logs 10 (5,000 points per track)
Geocaches 500
Paperless Geocaching Yes
Altimeter No
Barometer No
Compass GPS
Flashlight No
Microphone No
Speaker No
Camera No
Picture Viewer No
Turn by Turn Routing No
Vertical Profile Yes
Area Calculation Yes
Hunt & Fish Calendar Yes
Sun & Moon Information Yes
Tide & Current Tables No
AAA TourBook No
Lifetime Traffic No
Highway Lane Assist No
Multi-Destination Routing No
Favorites Menu No
Speed Limits No
Spoken Street Names No
Audible Proximity Alarrms No
Silent Proximity Alarms No
Branded POI's No
POI's Along Route No
Smart City Search No
Smart Detour No
QWERTY/ABCD Keyboard No
Fin Your Car No
Pedestrian Mode No
Suspend Mode Yes
TourDirector No
Landscape/Portrait Mode No
Navionics Map Support No
RV/Truck Route No
Custom Vehicle Profile No
NMEA Data Yes (NMEA 0183)
Operating Temperature 14°F to 140°F (-10°C to 60°C)

Documents

Magellan eXplorist 110 User Manual
Magellan eXplorist 110 Data Sheet
Magellan eXplorist x10 Series Brochure
Magellan eXplorist x10 Series Features

Media

Press Release - eXplorist 110

Update History

1.62 (11DEC13)
  • Fix issue with UTM shows 'N/A' for coordinate south of N10.00000 deg.

1.59 (14MAY13)
  • Fixed Area Calculation issue where the last leg was not included.
  • Fixed issues with Japanese keyboard.
  • Translation Update.
  • Fixed NZ grid issue.

1.12 (11APR12)
  • Leap Year Fix.
