• The Montana 7x0 is equipped with 11 Dashboards.
• Dashboards allow you to show more features and functions when and where you need them.
• Providing at-a-glance information and added controls so you can multi-task without having to exit the current page.
• Dashboards can be enabled for the Map, Compass and Trip Computer pages.
• Dashboard availability may vary for each page.

Selecting Dashboards

• Choose from available dashboards to enhance your Montana 7x0 functionality:

Enable Dashboard

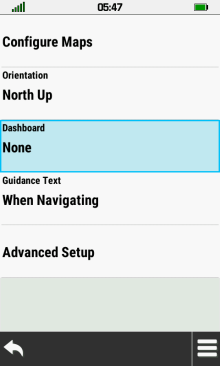

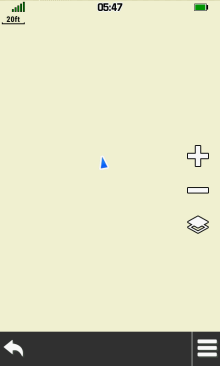

Map page without active dashboard	[Map Setup]	Select [Dashboard]	Choose desired dashboard

Disable Dashboard

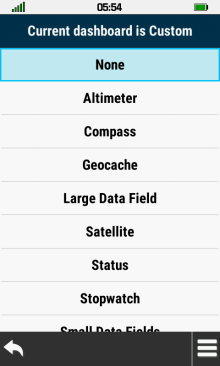

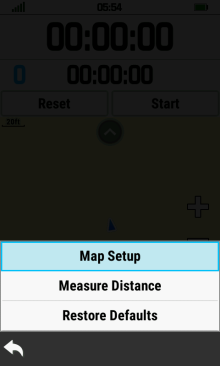

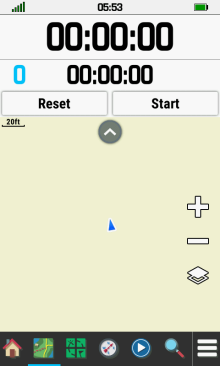

Map page with active dashboard	[Map Setup]	Select [Dashboard]	Select [None]

Custom Dashboard

• Configure desired dashboards to be auto-configured based on current navigation status:

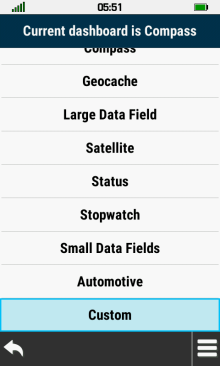

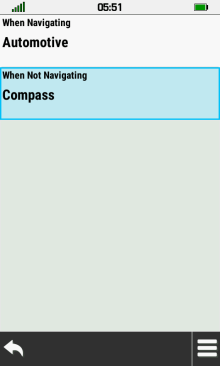

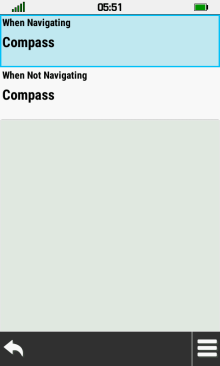

Select [Custom]	Choose desired dashboard for [When Navigating]	Choose desired dashboard for [When Not Navigating]	Custom Dashboards are enabled as configured

Available Dashboards

• Select desired Dashboard to view more information

Altimeter	Automotive	Compass
Corner Data Fields	Geocaching	Large Data Field
Music Control	Satellite	Small Data Fields
Status	Stopwatch
