- Marking a waypoint.
- Saving a track log.
- Entering coordinates.
- Logging a geocache.
- Searching POI's.
- Composing a message.
- Text entry on the Montana 7x0 is accomplished using a full size on screen keyboard.
- A dedicated number pad is also available where only numeric data entry is required.
- With a generous 480x800 display resolution,
the Montana 7x0 full size
keyboard is available in all display orientations.
Keyboard Selection
- Select keyboard configuration and layout as desired.
- Press and hold space bar to change keyboard language.
| Lower case | Upper case | Numbers and Symbols | Alternate Symbols |
|---|---|---|---|
 |
 |
 |
 |
 Change Case |
 Numbers and Symbols |
 Alternate Symbols |
 Alphabet |
Keyboard Language
- Select desired input language for keyboard and number pad.
 |
 |
 |
|
|---|---|---|---|
Press and
Hold Space Bar |
Select desired Language | Keyboard is reconfigured for selected language |
Keyboard Function
- Press and hold individual keyboard letters and symbols to select
diacritic versions:
- Use the Shift key to set keyboard case:
|
|
Lower Case enabled | Press once to enable Upper Case |
|
|
Press twice to enable Upper Case shift lock | |
 |
Upper Case enabled | Press once to enable Lower Case |
|
|
Press twice to enable Upper Case shift lock | |
 |
Shift Lock enabled | Press once to enable Lower Case |

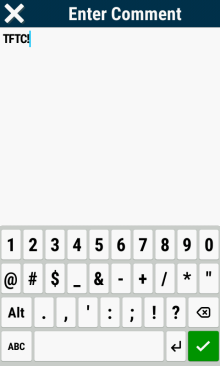

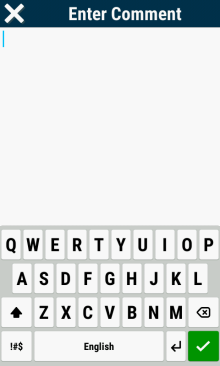

Enter Text
- Enter desired text when prompted.
 |
 |
 |
 |
|---|---|---|---|
| Select keyboard and case | Enter desired text | Repeat as needed | Select
when complete |

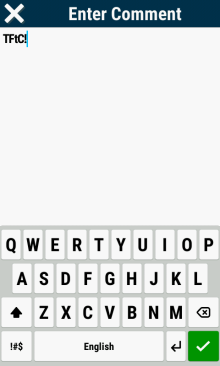

Edit Text
- Edit a portion of the text displayed on the screen.
 |
 |
 |
 |
|---|---|---|---|
Current
text is displayed |
Position cursor for edit | Make desired corrections | Select
when complete |

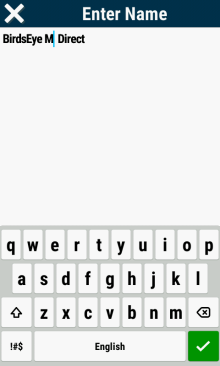

Delete Text
- Delete a portion of the text displayed on the screen.
 |
 |
 |
 |
|---|---|---|---|
Position cursor for delete |
Select
to delete character |
Repeat as needed | Select
when complete |

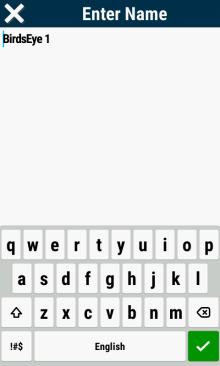

Delete Line
- Delete a full line of text.
 |
 |
 |
 |
|---|---|---|---|
Current
text is displayed |
Position cursor at start of line |
Select
to delete entire line |
Enter new text as desired |

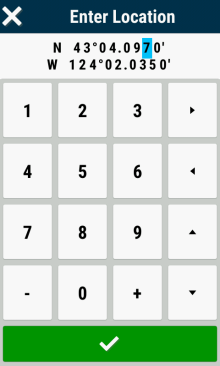

Edit Coordinates
- Coordinate format is configured in [Setup > Position Format].
 |
 |
 |
 |
|---|---|---|---|
Use
to select desired number |
Enter desired value or
to change value |
Use
to select cardinal letter and
to change value |
Select
when complete |

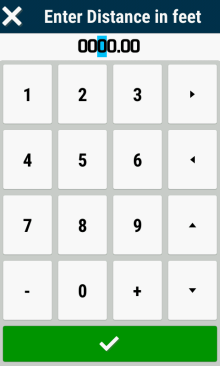

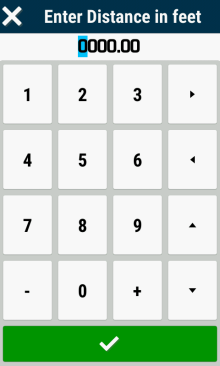

Enter Distance
- Distance measurement units are configured in [Setup > Units].
 |
 |
 |
 |
|---|---|---|---|
Current
distance value is displayed |
Use
to position cursor |
Enter desired value or
to change value |
Select
when complete |

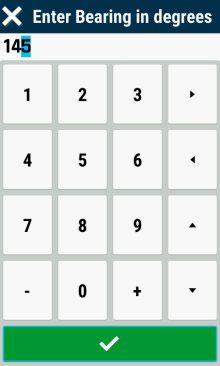

Enter Bearing
 |
 |
 |
 |
|---|---|---|---|
Enter
first bearing digit |
Enter second bearing digit | Enter third bearing digit | Select
when complete |
Enter Elevation
- Elevation measurement units are configured in [Setup > Units].
 |
 |
 |
 |
|---|---|---|---|
Current
elevation value is displayed |
Use
to position cursor |
Enter desired value or
to change value |
Select
when complete |

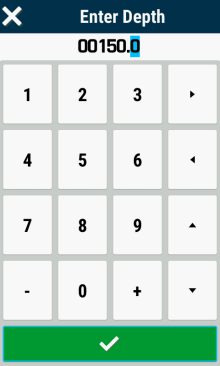

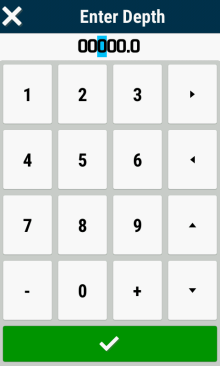

Enter Depth
- Depth measurement units are configured in [Setup > Units].
 |
 |
 |
 |
|---|---|---|---|
Current
depth value is displayed |
Use
to position cursor |
Enter desired value or
to change value |
Select
when complete |

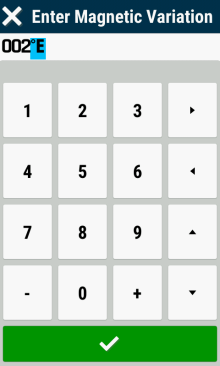

Enter Magnetic Variation
- Compass magnetic declination correction is configured in [Setup > Heading].
 |
 |
 |
 |
|---|---|---|---|
Current
magnetic variation value is displayed |
Use
to position cursor |
Enter desired value or
to change value |
Select
when complete |
