Display

• Choose a directional heading style for the compass display
  • Cardinal Letters
  • Numeric Degrees
  • Mils

Cardinal Letters	Numeric Degrees	Mils

North Reference

• Select the desired North Reference for the compass
  • True
  • Magnetic
  • Grid
  • User



Setting Compass Magnetic Declination Correction

• What is my Magnetic Declination?
• Tip: Use this Connect IQ Widget to determine the magnetic declination for your current position directly on the device!

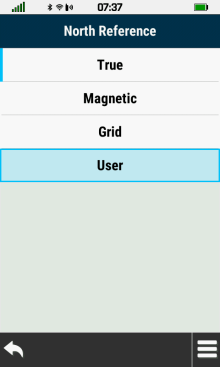

Select [North Reference]	Select [User]	Enter Magnetic Variation

Go To Line/Pointer

• Accent colors are displayed using the day/night colors selected in [Setup > Display > Appearance].
• Select the desired bearing pointer style
  • Bearing (Large)
  • Bearing (Medium)
  • Bearing (Small)
  • Course (CDI)



Large	Medium	Small	CDI

Compass

• Set the compass mode
  • Auto (switches from electronic compass to GPS compass when traveling at higher rates of speed)
  • Off (disables 3-axis compass)



Calibrate Compass

• Always calibrate the compass outdoors, away from objects that influence magnetic fields (cars, buildings, power lines)
  • After moving long distances
  • After experiencing significant temperature changes
  • After replacing the batteries
• Each step of the calibration process must be performed exactly as shown:

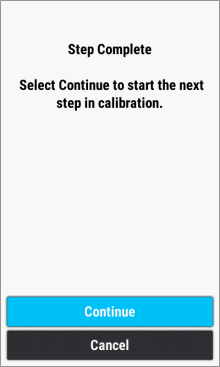

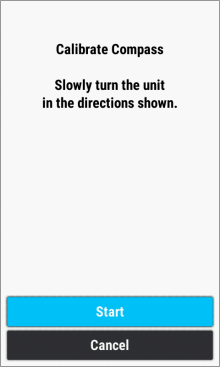

Select [Calibrate Compass]	Select [Start] to begin	Select [Continue] after completing each step	Select [Retry] if any step is unsuccessful
Step 1 Rotate GPSr as directed	Step 2 Roll GPSr as directed	Step 3 Flip GPSr as directed	Calibration Completed Successfully, Select [OK]
