Carried over from the Oregon 6x0 (shown below):

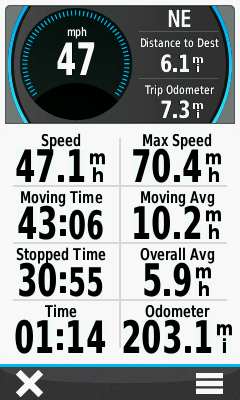

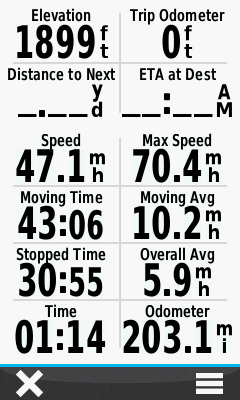

The Oregon 7x0 Trip Computer can display as much as 33% more data on one page than any Garmin GPSr before it. Need more? Add additional pages of data fields, each configured just the way you want them. With 30% more data fields to choose from (vs Montana), you're going to need them!

Notes

1. Why do the Trip Computer Odometer and Track Log Distance not agree?

Function

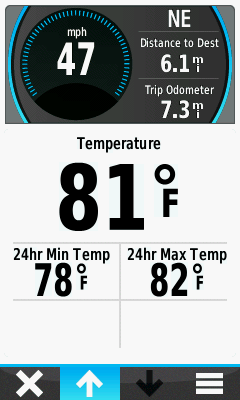

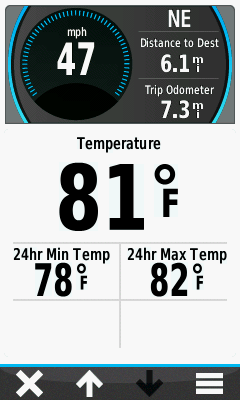

Trip Computer Home Page		Select next page		View additional Data Fields		Return to previous page

Setup Menu

		Setup Menu

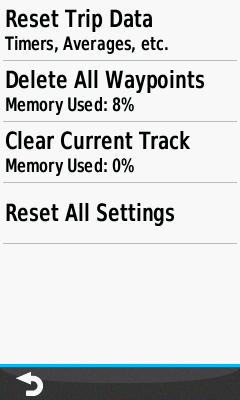

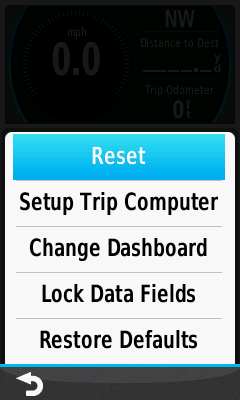

Reset Menu

[Setup Menu]		[Reset]		Reset Menu

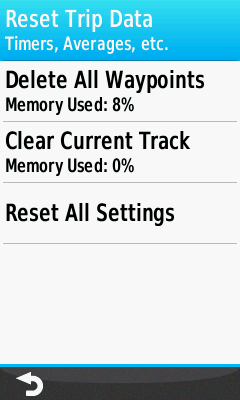

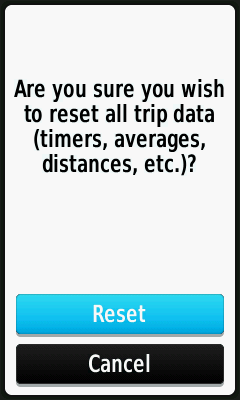

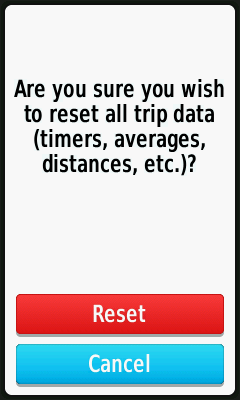

Reset Trip Data

[Reset Menu]		[Reset Trip Data]		[Reset] to proceed		[Cancel] to abort

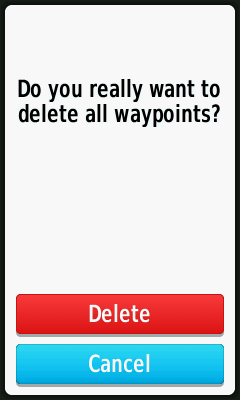

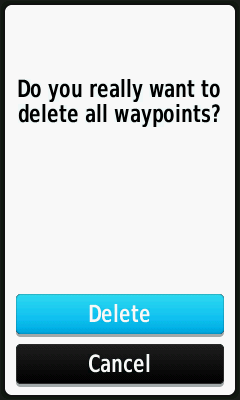

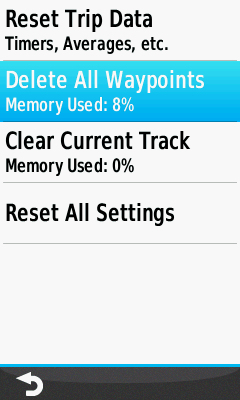

Delete All Waypoints

[Reset Menu]		[Delete All Waypoints]		[Delete] to proceed		[Cancel] to abort

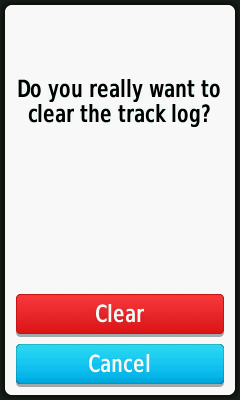

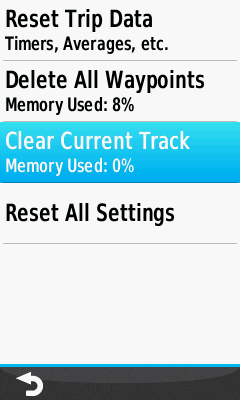

Clear Current Track

[Reset Menu]		[Clear Current Track]		[Clear] to proceed		[Cancel] to abort

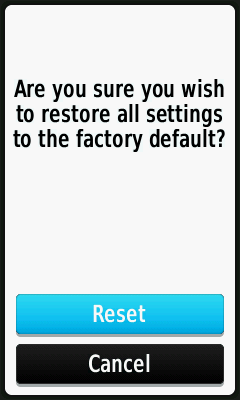

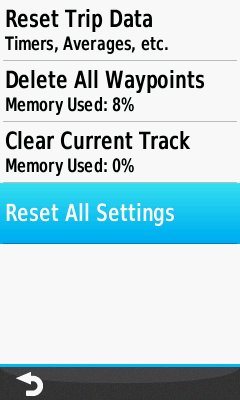

Reset All Settings

[Reset Menu]		[Reset All Settings]		[Reset] to proceed		[Cancel] to abort

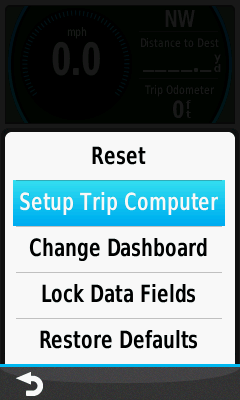

Setup Trip Computer

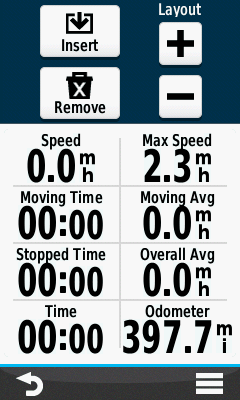

[Setup Menu]		[Setup Trip Computer]		Trip Computer Setup Page

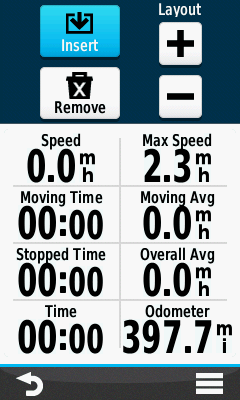

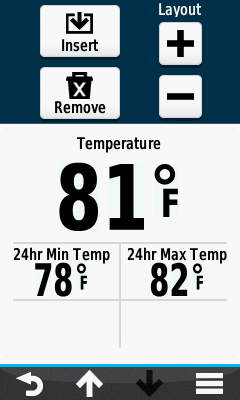

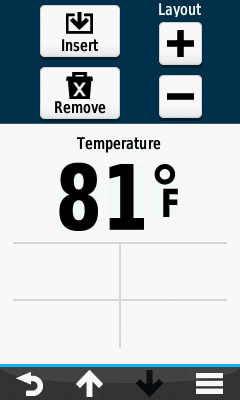

Insert Page

Trip Computer Setup Page				New page is added

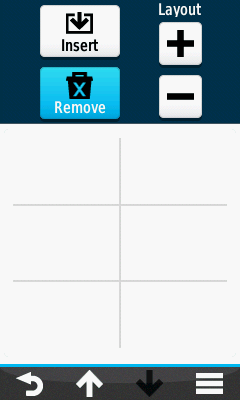

Remove Page

Select Trip Computer Page				Page is removed

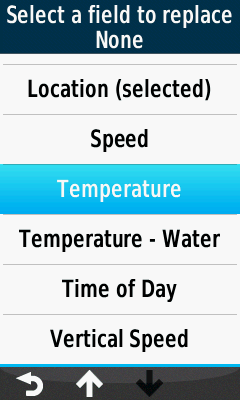

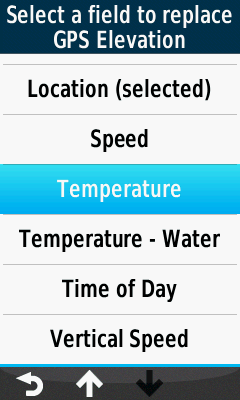

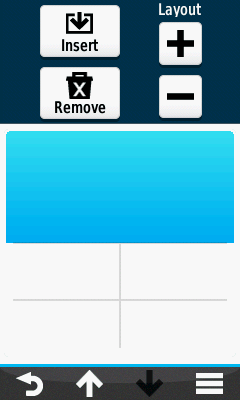

Change Data Field

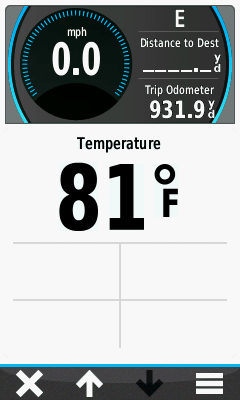

• From the Trip Computer (Data Fields must be Unlocked!)

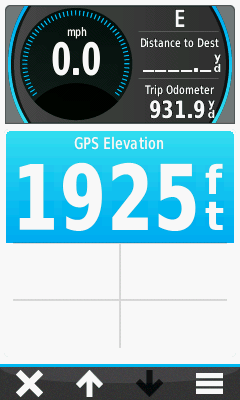

Select Data Field		Select Data Field category		Select desired Data Field		Data Field is replaced

• From the Trip Computer Setup Menu

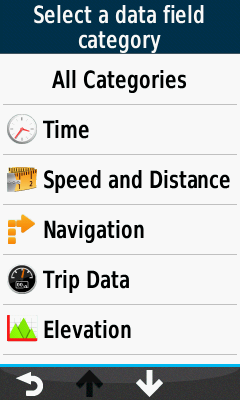

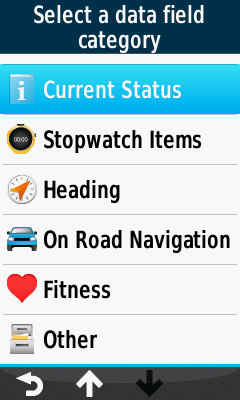

Select Data Field		Data Field Category Menu		Select Data Field category		Select desired Data Field
Data Field is updated		Repeat as desired

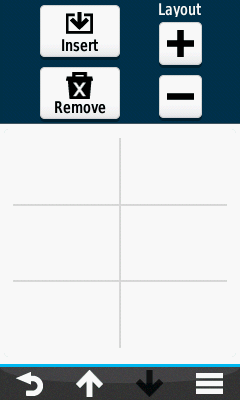

Change Layout

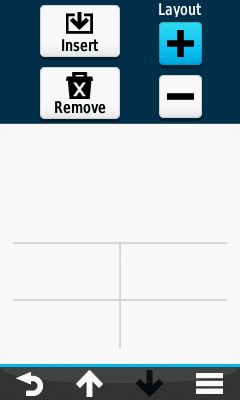

		Select to increase the number of data fields

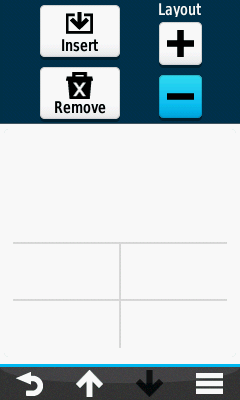

		Select to decrease the number of data fields

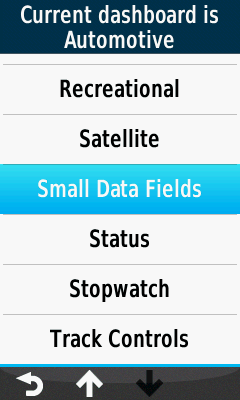

Change Dashboard

• From the Trip Computer

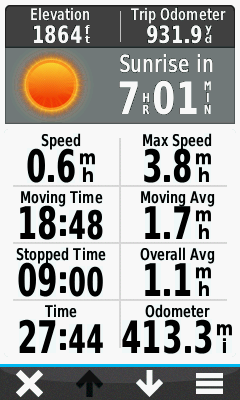

Press and Hold Dashboard		Select desired Dashboard		Dashboard is replaced

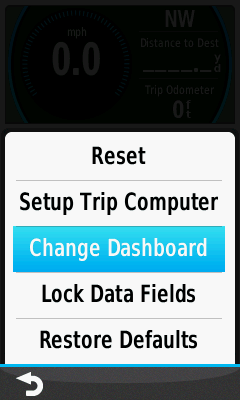

• From the Setup Menu

[Change Dashboard]		Select desired Dashboard		Dashboard is replaced

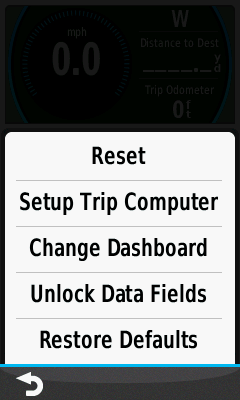

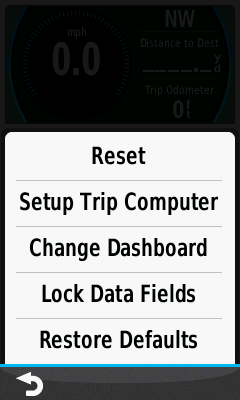

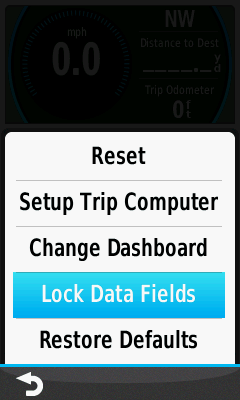

Lock Data Fields

Data Fields Unlocked		[Lock Data Fields]		Data Fields Locked

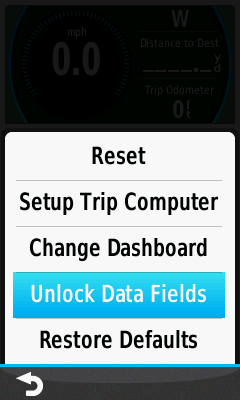

Unlock Data Fields

Data Fields Locked		[Unlock Data Fields]		Data Fields Unlocked

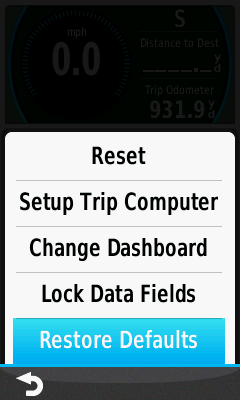

Restore Defaults

[Setup Menu]		[Restore Defaults]

Configuration

• Flexible display configurations combine one dashboard with multiple data field options, all user configurable:

		Dashboard
2 Data Fields		5 Data Fields		6 Data Fields		8 Data Fields
			/ / / /
		Large Data Field Dashboard
3 Data Fields		6 Data Fields		7 Data Fields		9 Data Fields
			/ / / /
		Small Data Fields Dashboard
6 Data Fields		9 Data Fields		10 Data Fields		12 Data Fields
			/ / / /
