Function

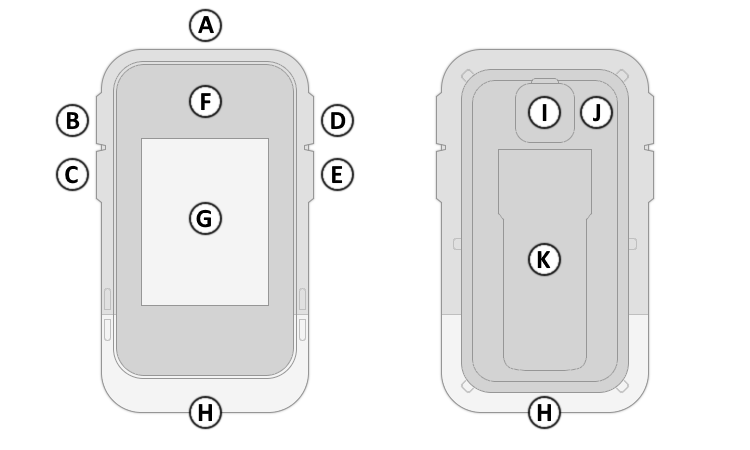

Device Overview


A. Power Button
B. Up Button
C. Down Button
D. OK Button
E. Back Button
F. GNSS Antenna
G. Display
H. Lanyard Attachment
I. Battery Cover
J. USB-C Port (Under Cover)
K. Spine Mount


Button Operation

A. Power Button   D. OK Button
     1. Press and hold to power device on.        1. Press and release to confirm current selection.
     2. Press and hold to open Power Menu.        2. Press and release to acknowledge messages.
     3. Press and hold to unlock buttons (when locked).        3. Press and release to open page menu.
     4. Press and release to cycle backlight on/off.        4. Press and hold to Mark Waypoint.
B. Up Button        5. Press and hold with Back button to Save Screenshot.
     1. Press and release to select previous page or menu item.   E. Back Button
     2. Press and hold to scroll pages or menu items.        1. Press and release to cancel current selection.
C. Down Button        2. Press and release to return to previous menu or page.
     1. Press and release to select next page or menu item.        3. Press and hold to view Glances.
     2. Press and hold to scroll pages or menu items.        4. Press and hold with OK button to Save Screenshot.




Special Key Functions



Status Bar Icons
  • The eTrex SE Status Bar provides the following device status information:
  GNSS Signal Strength
  GNSS Disabled
  Battery Charge Remaining
  Current Time (12 hour)
  Current Time (24 hour)
  Activity Recording Paused
