Overview

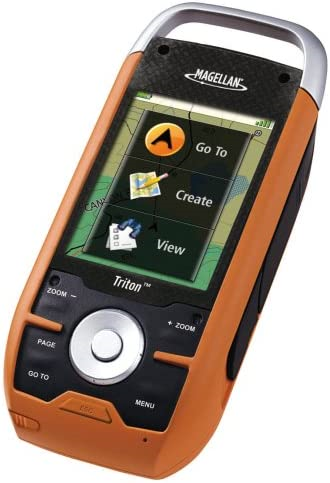

The Magellan Triton 1500 is unlike any handheld GPS system you've even seen, heard, or felt. It's the first consumer-grade outdoor GPS device with a touch-screen interface, fully integrated microphone and speaker, MP3 player, and LED flashlight, all crammed into a compact and affordable package.

Amazingly easy to use, the Triton 1500 reinvents handheld GPS. A large, 2.7" color touch screen makes it easy to navigate the simple, intuitive menus and control navigation features with a touch.

Use Magellan's exclusive VantagePoint software to easily manage and upload detailed maps, user generated content, updates and upgrades on your PC. View saved routes and tracks, then customize them for future trips or create new ones.

SD-card compatibility makes it easy to expand your navigation capabilities by adding detailed maps and applications. Upload optional detailed topographic maps, marine cartography, and other applications to find your way on all your outdoor adventures. Plus, Triton is the first handheld GPS to offer compatibility with National Geographic maps. These highly detailed nation-wide topographic maps based on USGS 1:24,000 series quads, offer seamless scalability, multi-layer overlays and much more.

Record audio notes for waypoints and play them back with the built-in microphone and speaker. A powerful, low battery consumption LED flashlight helps you find your way in the dark: an invaluable tool for camping and other outdoor recreation.

Triton is designed for precision navigation, offering the fastest GPS positioning acquisition in the industry with the SiRFstar III chipset. An integrated high-sensitivity antenna provides reliable signal reception even in heavy cloud cover, canyons or deep woods. Built-in signal augmentation reception (WAAS/EGNOS) provides 3-meter accuracy.

Rugged and waterproof, your Triton is built to withstand intense use, accidental impact and immersion in one meter of water for up to 30 minutes (IPX-7). It's ready to guide you across any terrain in the great outdoors.

Touch-screen technology makes it easy to use all the advanced features. View the elevation profile for the trail ahead (or any route) or even the track you just traveled. See the precise time of sunrise/sunset any day of the year. Get a calculation of the best hunting and fishing time. And much more.

Triton is built on the experience of GPS users and nearly 20 years of precision positioning technology from Magellan. Triton 1500: how you get there is up to you!

Features

  • 2.7" color touch screen control - The latest touch-screen technology is built in to the large brilliant color display. Control navigation and advanced features with a touch

  • Amazing ease-of-use - Reinventing handheld GPS, simple menus, instant access buttons, intuitive keypad and crystal clear graphics let you navigate without the need for a Ph.D.

  • Voice recorder - Microphone and speaker enable you to record audio notes for waypoints to share with friends and family or easily find your way back next time

  • Flashlight - Light your way with a powerful LED flashlight. Low power consumption helps maximize battery life

  • SD-card expansion - Use your own SD memory cards to upload unlimited detailed maps and store routes, waypoints, geocaches and more

  • Built-in maps - Basemap of the 48 contiguous United States, Alaska, and Canada (major highways, city centers, bodies of water and more) plus worldwide geographic boundaries

  • Add detailed maps - Upload optional marine cartography, topographic maps, and more, including the highly-detailed and feature-packed National Geographic TOPO! State series and Weekend Explorer 3D maps to your OWN SD cards

  • Compass screen - See your direction of travel, distance and position of destination, heading, bearing, speed and more on the beautiful graphic compass

  • 3-meter accuracy - SiRFstar III chipset and integrated multidirectional antennae offer superior GPS accuracy using the Wide Area Augmentation System (WAAS)

  • Digital music player - Upload your digital music to the available memory or own SD card and enjoy a customized soundtrack as you explore. Plug in any standard headphones for clear private listening

  • External antenna connector - Simply plug in an external antenna in your boat or off-road vehicle for enhanced GPS signal reception

  • Audio jack - Plug in any standard 1/8" headphones to enjoy clear private listening of your digital music, voice notes and other recordings

Specifications

Part Number 980941-01
Unit Dimensions 2.5" x 5.75" x 1.13" (6.35 cm x 14.6 cm x 2.87 cm)
Display Size 2.7" (6.86 cm) Diagonal QVGA (240x320)
Display Type Color Transflective (LED Backlight)
Touch Screen Yes
Weight 8.0 oz (227 g) with batteries
Battery Type AA x 2
Battery Life 10 hours
Waterproof Yes (IPX7)
Floats No
High Sensitivity Receiver Yes (SiRFstar III)
GNSS Antenna Patch
External Antenna Yes (optional accessory)
GNSS Constellations GPS + WAAS/EGNOS
Accuracy < 7 meters (GPS),  3 - 5 meters (WAAS/EGNOS)
Position Update Rate  1 Hz
First Fix Cold  < 2 minutes
First Fix Warm  < 1 minute
First Fix Hot  < 20 seconds
CPU 400 MHz
Interface USB 1.1
Memory 20 MB
Data Card Yes (Secure Digital, 4 GB Max)
Basemap Yes
Detailed Maps Yes
Add Maps Yes
Turn by Turn Routing Yes (requires Magellan Street Map)
Elevation Profile No
Area Calculation Yes
Waypoints Yes (500)
Routes Yes (20)
Trails Yes (5,000 track points)
Track Log Yes
Geocaches Yes
Altimeter GPS
Barometer No
Compass GPS
Flashlight Yes
Microphone Yes
Speaker Yes
Audio Jack Yes (1/8" headphone)
Camera No
Photo Viewer Yes
Voice Recorder Yes
Digital Music Player Yes
NMEA (0183) Data Yes
Operating Temperature 14°F to 140°F (-10°C to 60°C)

Documents

Magellan Triton 1500 User Manual (2007)
Magellan Triton 1500 User Manual (2009)
Magellan Triton Series User Manual Addendum (2009)
Magellan Triton 1500 Data Sheet (2007)
Magellan Triton Series Features

Media

Press Release - Magellan Reinvents Handheld GPS with New Triton Handheld Series
Press Release - Magellan Announces Partnership with National Park Foundation
Press Release - Magellan First to Bring National Geographic Maps to Handheld GPS Receivers
Press Release - Magellan Launches VantagePoint - Enabling GPS Users to Manage and Expand Their Navigation Experience
Press Release - Magellan Announces New Triton Software with Improved North American Basemap

Update History

1.57 (20AUG09)
  • Access to Main Menu From Any Navigation Page - The ability to access the Main Menu (Go To, Create, View) from any Navigation Page.
  • Improved Track Management - The ability to Start, Stop, Resume Track from the contextual menu.
  • Improved Route Management - The ability to Go To Next or Go To Previous point while in an active route.
  • User Grid Coordinate System (Based on Additional Coordinate Systems) - Added customizable User Grid functionality based on additional coordinate system, including Lambert Conic, Stereograph, Oblique Mercator, UTM, and Polyconic.
  • Area Calculation - The ability to calculate an area based on active track, saved trails, and saved routes.

1.42 (29MAY09)
  • New North America basemap.
  • New Map selection user interface.
  • Support for National Geographic TOPO! Explorer SuperQuad maps.
  • Ability to turn the basemap ON & OFF on the unit.
  • Improved cartography and symbols, such as Points of Interest icons.
  • Improved overall system performance, including multimedia, translation, and map display.
  • Added True Magnetic North indicator on map screen.
