Overview |
|
|

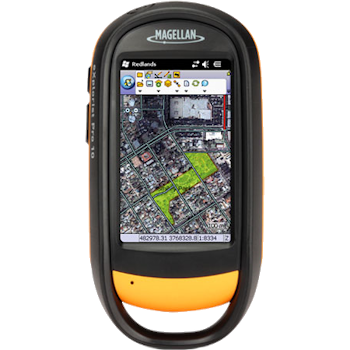

The Magellan eXplorist Pro 10 keeps your GIS database accurate
and up-to-date. With just one system, large amounts of data can
be mapped virtually effortlessly in a minimal amount of time.
The small, lightweight, yet rugged eXplorist Pro 10 is the
simple solution to your biggest GIS mobile application
challenges.
With a powerful 533MHz processor, 128MB RAM,
and 4GB of onboard storage, the high-performance, handheld
eXplorist Pro 10 provides all the power needed to work with maps
and large-data sets away from the office. Its Windows Mobile
v6.5 operating system allows you to choose a software solution
designed specifically for your needs. The unit’s built-in
Bluetooth wireless technology makes it easy to receive
background map data off the Internet using a Bluetooth-enabled
cell phone. It also can be connected to other Bluetooth-enabled
devices, such as laser rangefinders and barcode scanners, for
convenient cable-free solutions.
Supply your mobile
workforce with the durable, compact eXplorist Pro 10 that
incorporates functional features such as photo, video and voice
note capture and a high-yield GPS receiver with 3 to 5 meters
real-time positioning accuracy. The handheld eXplorist Pro 10 is
the affordable way to maximize mobile GIS productivity. |
|
|
|
Features |
- Windows Mobile 6.5 in English, Spanish, French, Danish,
Italian, German, Dutch, Brazilian Portuguese, Russian,
Traditional Chinese, Simplified Chinese, Japanese, Korean
- Samsung 533MHz S3C2450 processor
- Integrated Bluetooth v2.0 wireless technology
- Integrated
digital camera (color, 3.2 megapixel resolution)
- 128MB RAM
on-board memory
- 4GB non-volatile internal flash data storage
- MicroSD (MicroSDHC compatible) memory card slot
- WQVGA display
(400 x 240 Portrait), sunlight-readable transflective color
touch screen
- 16 bit Color support
- Integrated speaker and
microphone
- 3D compass, Pressure Altimeter and Barometer
- Powered by two AA batteries, lasting up to 15 hours w/ LCD
backlight at 40 Nits
- Integrated high-sensitivity SIRFstar III
GPS receiver and Multidirectional Patch antenna
- 3 to 5 meter
typical accuracy
- 1 to 3 meter post-processed accuracy
- NMEA and SiRF protocol support
|
|
|
|
|
|
Specifications |
|
|
|
Part Number |
TP10ENSGXWW |
|
Unit Dimensions |
2.6" x 5.0" x 1.5" (6.5 cm x 12.8 cm x 3.7 cm) |
|
Display Size |
3.0" Diagonal WQVGA (240x400) |
|
Display Type |
Color Transflective |
|
Touch Screen |
Yes |
|
Weight |
6.9 oz (195 g) |
|
Battery Type |
AA x 2 |
|
Battery Life |
15 hours |
|
Waterproof |
Yes (IPX7) |
|
Floats |
No |
|
High Sensitivity Receiver |
Yes (SiRFstar III) |
|
GNSS Antenna |
Patch |
|
GNSS Constellations |
GPS +
WAAS/EGNOS |
|
Accuracy |
3 - 5 meters (WAAS/EGNOS), 1 - 3 meters (post processed) |
|
CPU |
533 MHz |
|
Bluetooth |
Yes (2.0) |
|
Wi-Fi |
No |
|
Interface |
USB |
|
Memory |
4 GB user data |
|
Basemap |
No |
|
Preloaded Maps |
No |
|
Add Maps |
Yes |
|
Data Card |
Yes (microSD, 32 GB Max) |
|
Accepts GPX Files |
Yes |
|
Waypoints |
No |
|
Routes |
No |
|
Track Logs |
No |
|
Geocaches |
No |
|
Paperless Geocaching |
No |
|
Altimeter |
Yes |
|
Barometer |
Yes |
|
Compass |
Electronic 3-axis |
|
Flashlight |
No |
|
Microphone |
Yes |
|
Speaker |
Yes |
|
Audio Jack |
Yes (Stereo) |
|
Camera |
Yes (3.2 MP) |
|
Picture Viewer |
Yes |
|
Turn by Turn Routing |
No |
|
Vertical Profile |
No |
|
Area Calculation |
No |
|
Hunt & Fish Calendar |
No |
|
Sun & Moon Information |
No |
|
Tide & Current Tables |
No |
|
AAA TourBook |
No |
|
Lifetime Traffic |
No |
|
Highway Lane Assist |
No |
|
Multi-Destination Routing |
No |
|
Favorites Menu |
No |
|
Speed Limits |
No |
|
Spoken Street Names |
No |
|
Audible Proximity Alarrms |
No |
|
Silent Proximity Alarms |
No |
|
Branded POI's |
No |
|
POI's Along Route |
No |
|
Smart City Search |
No |
|
Smart Detour |
No |
|
QWERTY/ABCD Keyboard |
No |
|
Find Your Car |
No |
|
Pedestrian Mode |
No |
|
Suspend Mode |
Yes |
|
TourDirector |
No |
|
Landscape/Portrait Mode |
No |
|
Navionics Map Support |
No |
|
RV/Truck Route |
No |
|
Custom Vehicle Profile |
No |
|
NMEA Data |
Yes (NMEA 0183) |
|
Operating Temperature |
14°F to 140°F (-10°C to 60°C) |
|
Storage Temperature |
-4°F to 158°F (-20°C to 70°C) |
|
|
|
|
|
Documents |
|
|
|
Magellan eXplorist Pro 10 User Manual |
|
Magellan eXplorist Pro 10 Quick Start Guide |
|
Magellan eXplorist Pro 10 Spec Sheet |
|
Magellan eXplorist Pro 10 for EZSurv Manual |
|
Magellan eXplorist Pro 10 for EZSurv Spec Sheet |
|
Magellan eXplorist Pro 10 for EZTagCE Manual |
|
Magellan eXplorist Pro 10 for EZTagCE Spec Sheet |
|
|
|
|
|
Media |
|
|
|
Press Release - eXplorist Pro 10 |
|
|
|
|
|
Update History |
|
|
|
N/A |
|
|
|
|
