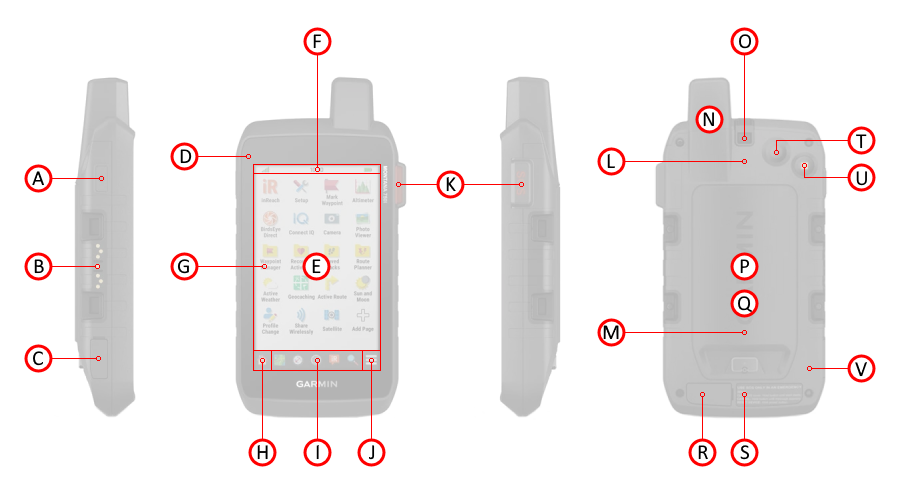

A. |
Power Button (user configurable) |
J. | Option Menu |
|
B. |
• Displays available options for active application | ||
|
C. |
USB Port (under cover) |
K. | SOS Button (under cover, 7x0i only) |
|
D. |
Status LED (under glass) |
L. |
Atmospheric Pressure Port |
Expedition Mode is Active |
M. |
Battery Vent | |
SOS Mode is Active |
N. |
GNSS Antenna | |
|
iR Message
Failure or
Low Battery |
O. |
Lanyard Mount | |
|
Unread
iR Message |
P. |
Battery Pack | |
|
E. |
5.0" Transflective WVGA Multi-Touch Display |
Q. |
microSD Card Slot (under battery) |
|
F. |
Status Bar |
R. |
External Antenna Connection (under cover, 7x0i only) |
|
G. |
Application Window (Main Menu, Setup Menu, Find Menu, Status Page) | S. | Lanyard Mount (700/710 only) |
|
H. |
Function Shortcut (Main Menu, Back, Exit, Screen Lock) | T. | 8MP Camera (750i/760i only) |
|
I. |
Favorites Menu | U. | LED Beacon Flashlight |
| • Displays up to five user configurable shortcuts | V. | MIL STD 810G IPX7 Rugged Case |
