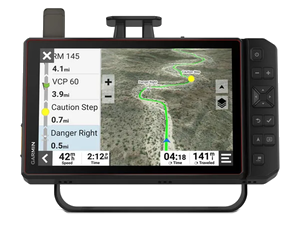

Tread XL Baja Race
010-02510-00

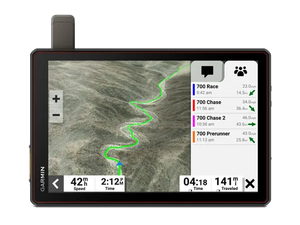

Tread XL Baja Chase
010-02833-00
11.4” x 7.6” x 2.5” (29 x 19.3 x 6.4 cm) with dock
58.8 oz (1666.5 g) with dock
|
Tread XL Baja Race 010-02510-00 |
Tread XL Baja Chase 010-02833-00 |
|
| General | ||
| Unit Dimensions |
9.9” x
7.8” x 1.2” (25.2 x 19.9 x 3.1 cm) without dock 11.4” x 7.6” x 2.5” (29 x 19.3 x 6.4 cm) with dock |
|
| Weight |
32.8 oz (930 g) without dock 58.8 oz (1666.5 g) with dock |
|
| Display Size | 10.1" (25.7 cm) - 8.5" x 5.3" (21.7 x 13.6 cm) | |
| Display Resolution | 1280 x 800 pixels | |
| Display Type | high brightness glass multi-touch HD color TFT with white backlight | |
| Touchscreen | Yes | |
| Water / Dust Rating | IP67 | |
| Drop Rating | MIL STD 810 | |
| Floats | No | |
| Battery | Internal Rechargeable Lithium-ion | |
| Battery Life | up to 6 hours at 50% backlight, up to 1 hour at 100% backlight | |
| Operating Temperature | -4° to 131°F (-20° to 55°C) | |
| Charging Temperature | 32° to 113°F (0° to 45°C) | |
| External Power Input | 12v - 24v DC | |
| Mount | Locking Magnet Assisted with 1.5" Ball Adapter AMPS Plate | |
| Iridium Antenna | Quad Helix | |
| GPS Antenna | Internal Patch | |
| GPS Chipset | - | |
| High Sensitivity GPS Receiver | Yes | |
| Multi-GNSS | ||
| GNSS Networks | GPS + Galileo | |
| Iridium Modem | SBD | |
| Interface | USB-C | |
| Memory | ||
| Internal Memory | 128GB | |
| Accepts Data Card | Yes (microSD, Max 256GB, Class 2 to 10) | |
| Custom POIs | Yes | |
| Waypoints | 8,500 | |
| Routes | 100 | |
| Tracks | 2,000 | |
| Maps | ||
| Preloaded Maps | Street Maps | |
| Topographical Maps | ||
| US Public Land Boundaries | ||
| Private Land Parcel Maps | ||
| USFS Roads and Trails | ||
| MVUM Maps for Motorcycle, ATV, SxS and Full Size 4x4 | ||
| High Definition 3D Terrain Maps | ||
| Ability to Add Maps | Yes | |
| Garmin Custom Maps | 400 | |
| Garmin BirdsEye Maps | 250 | |
| Sensors | ||
| Electric Compass | Yes | |
| Barometric Altimeter | ||
| 10Hz Multi-GNSS Positioning | ||
| UV Sensor | No | |
| Microphone | ||
| Outdoor Recreation Features | ||
| Point-To-Point Navigation | ||
| Navigate-A-Track Navigation | ||
| Turn-By-Turn Trail Navigation | ||
| Navigation Features | ||
| Garmin Real Directions Landmark Guidance | ||
| TripAdvisor Traveler Ratings | ||
| Route Shaping Through Preferred Cities/Streets | ||
| Traffic Information | ||
| Lane Assist With Junction View | ||
| Speed Limit Indicator | ||
| Driver Alerts for Sharp Curves, School Zones, Red Light and Speed Cameras, and More | ||
| Adventure Features | ||
| Built-In inReach Technology (Requires Subscription) | ||
| Pair with Garmin PowerSwitch | ||
| Compatible with Group Ride Radio | ||
| Group Ride Mobile | ||
| Compatible with External GPS Antenna | ||
| Compatible with External inReach Satellite Antenna | ||
| Track Recorder (Breadcrumb Trail) | ||
| IOverlander Points of Interest | ||
| Ultimate Public Campgrounds | ||
| BirdsEye Satellite Imagery | ||
| Advanced Features | ||
| Smart Notifications Via APP | ||
| Wi-Fi Map and Software Updates | ||
| inReach | ||
| inReach SOS Rescue | Yes | |
| inReach Tracking | ||
| inReach Messaging | ||
| inReach Weather | No | |
| inReach Remote | ||
| Wireless | ||
| Backup Camera Compatible | Yes | |
| Bluetooth Calling | ||
| Wi-Fi Updates | ||
| Garmin Connect App | No | |
| Garmin Explore App | ||
| Garmin Tread App | Yes | |
| Smart Notifications | ||
| Live Tracking | Yes (via Group Ride Radio, Tread App or inReach Subscription) | |
| Wireless Unit to Unit Transfer | Yes (via Group Ride Radio) | |
| Connect IQ Applications | No | |
| Live Weather | ||
| Dog Tracking | ||
| VIRB Remote | ||
| XERO Locations | ||
| RINEX Logging | ||
