• Dashboards provide additional at-a-glance information when desired.
• The eTrex SE is equipped with 5 Dashboards.
• Available for the Map, Compass, and Trip Computer pages.

	Move to previous selection (or) press-and-hold to scroll selections
	Move to next selection (or) press-and-hold to scroll selections
	Return to previous menu (or) press-and-hold to view Glances
	Confirm current selection (or) press-and-hold to Mark Waypoint
	Cycle backlight on/off (or) press-and-hold to open Power Menu

Change Dashboard

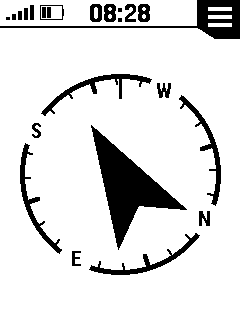

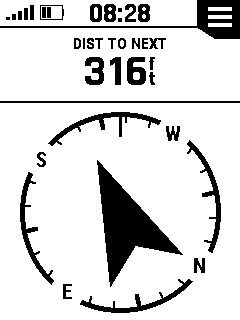

Enable Dashboard
Add a dashboard to the current page.

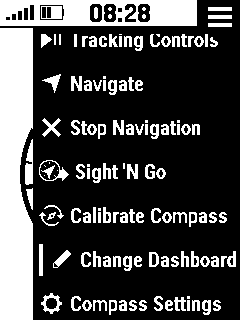

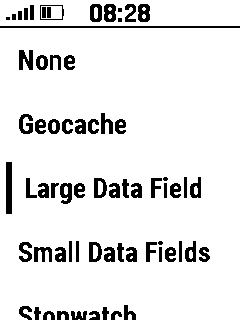

	Select 'Change Dashboard'	Choose Desired Dashboard	Dashboard Enabled

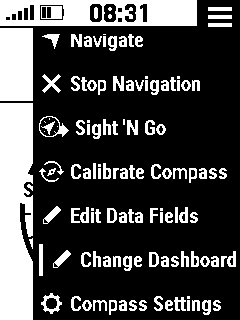

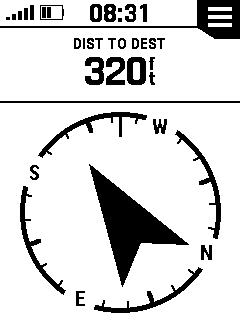

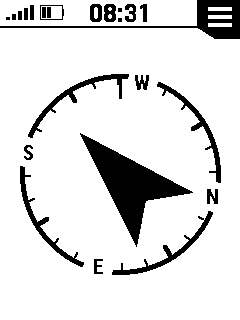

Disable Dashboard
Remove dashboard from the current page.

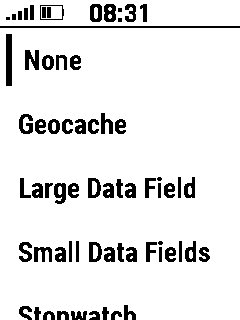

	Select 'Change Dashboard'	Choose [None]	Dashboard Disabled

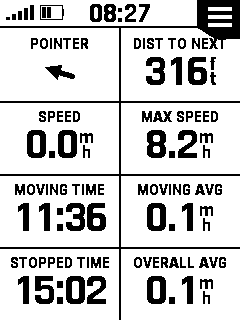

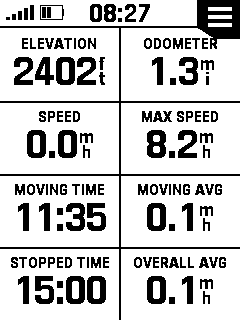

Edit Data Fields
Configure individual eTrex SE Data Fields as desired.

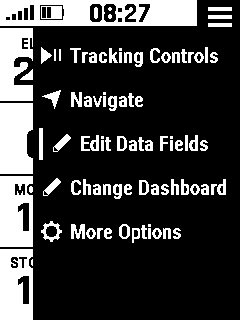

	Select 'Edit Data Fields'

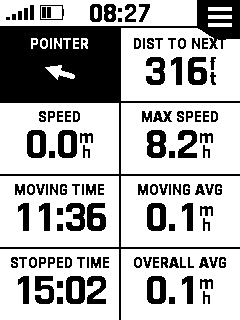

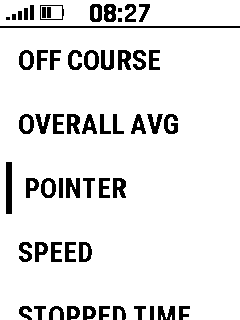

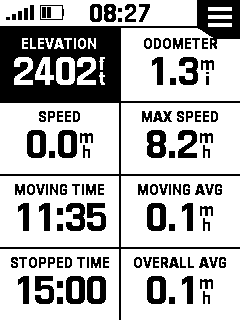

		Select Desired Data Field	Choose New Data Field
Select Next Data Field
to Repeat if Desired	When Complete
Compass
A compact version of the Compass page, this dashboard provides heading and bearing information when and where you need it.
With Destination	Without Destination
Geocache
The Geocache dashboard displays Geocache Type, Name, Bearing and Distance. The Geocache dashboard employs several display modes: Nearest Geocache - Displays information for the geocache nearest your present location. Active Geocache - Displays information for a geocache set as the active destination. Next Stage - Displays information for additional geocache coordinates or waypoints. Adds 'View Geocache' selection to option menu when enabled.
Nearest Geocache	Active Geocache	Next Stage
Large Data Field
The Large Data Field dashboard displays one large user configurable data field. Adds 'Edit Data Fields' selection to option menu when enabled.
Distance to Destination	Next Point
Small Data Fields
The Small Data Fields dashboard displays two small user configurable data fields. Adds 'Edit Data Fields' selection to option menu when enabled.
Distance to Destination
Pointer
Stopwatch
The Stopwatch dashboard displays total activity time and current lap time. Adds 'Stopwatch' selection to option menu when enabled.
