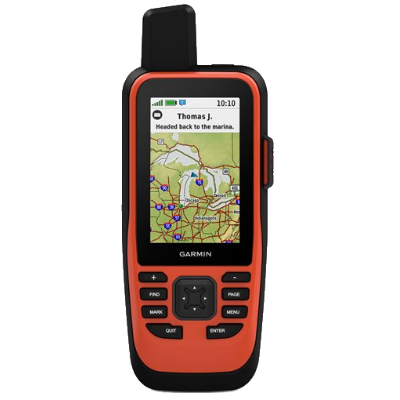

GPSMAP 86i
010-02236-00

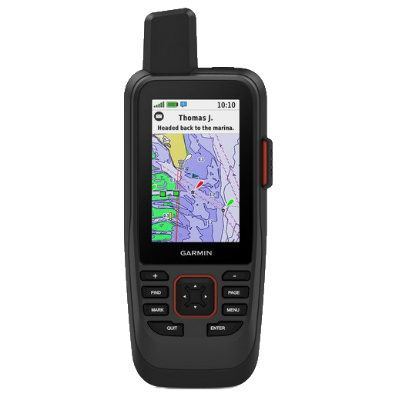

GPSMAP 86sci
010-02236-02
|
GPSMAP 86i 010-02236-00 |
GPSMAP 86sci 010-02236-02 |
|
| General | ||
| Unit Dimensions | 2.75” x 7.0” x 1.7” (7.0 x 17.8 x 4.4 cm) | |
| Weight | 9.59 oz (272 g) | |
| Display Size | 1.5" x 2.5" (3.8 x 6.3 cm) | |
| Display Resolution | 240 x 400 pixels (160 ppi) | |
| Display Type | 3.0" (7.6 cm) 65K color TFT | |
| Touchscreen | No | |
| Waterproofing | IPX7 | |
| Rugged Design | MIL STD 810G | |
| Floats | Yes | |
| Battery | Internal Rechargeable Lithium-ion (3.80V, 3100mAh, 11.78Wh) | |
| Battery Life | 35 hours (10 minute tracking) - 200 hours (Expedition Mode with 30 minute tracking) | |
| Battery Lifespan | 12 years (8 hrs/day x 1000 charge cycles) | |
| Integral Battery Charger | Yes | |
| GPS Antenna | Quad Helix | |
| GPS Chipset | Type M5 (3313) | |
| High Sensitivity GPS Receiver | Yes | |
| Multi-GNSS | ||
| GNSS Network | GPS + Galileo + WAAS/EGNOS | |
| Iridium Modem | SBD | |
| Interface | micro USB | |
| Operating Temperature | -4° to 140°F (-20° to 60°C) | |
| Charging Temperature | 32° to 104°F (0° to 40°C) | |
| Maps and Memory | ||
| Basemap | Yes | |
| Preloaded Map | No | BlueChart g3 Charts |
| Ability to Add Maps | Yes (15,000 map segments) | |
| Garmin Custom Maps | Yes (500 custom map tiles) | |
| Garmin BirdsEye Maps | Yes | |
| Internal Memory | 16GB | |
| Accepts Data Card | Yes (microSD, Max 32GB, Class 4 to 10) | |
| Custom POIs | Yes | |
| Waypoints | 10,000 | |
| Routes | 250 | |
| Courses | 250 | |
| Track Log | 20,000 points, 250 saved gpx tracks, 300 saved fit activities, 2,000 archive tracks | |
| Automatic Routing | Yes (with optional mapping for detailed roads) | |
| Sensors | ||
| Electric Compass | Yes (tilt-compensated 3-axis) | |
| Barometric Altimeter | Yes | |
| UV Sensor | No | |
| Microphone | ||
| Outdoor Recreational Features | ||
| Geocaching Friendly | Yes (Paperless) - load millions of geocaches manually (GPX + GGZ) or wirelessly (via Bluetooth or Wi-Fi) | |
| Outdoor GPS Games | No | |
| Flashlight | Yes | |
| Camera | No | |
| Photo Viewer | Yes | |
| Photo Navigation | ||
| Hunt/Fish Calendar | ||
| Sun/Moon Information | ||
| Area Calculation | ||
| Tide Tables | Yes (with optional Bluechart) | |
| Radio | No | |
| Multimedia | ||
| inReach | ||
| inReach SOS Rescue | Yes | |
| inReach Tracking | ||
| inReach Weather | ||
| inReach Messaging | ||
| inReach Remote | No | |
| Wireless | ||
| Garmin Connect | Yes | |
| Garmin Explore | ||
| Garmin Messenger | ||
| Smart Notifications | ||
| LiveTrack | ||
| Wireless Unit to Unit Transfer | ||
| Connect IQ Applications | ||
| Active Weather | ||
| VIRB Remote | ||
| XERO Locations | ||
| RINEX Logging | ||
